Are there any new lightweight materials that a clinching gun struggles to join?

A clinching gun struggles to join certain high-strength lightweight materials, such as ultra-high-strength steels or complex multi-material combinations with extreme hardness variations. While standard aluminum and mild steels are easily clinched, joining these advanced materials requires precise pressure control, optimized dies, and extensive testing to prevent material cracking or incomplete interlocking.

Core Answers & Key Points

• Material Hardness Limits: Advanced lightweight materials with high tensile strength often resist the localized cold deformation required by a clinching gun, leading to potential cracks.
• Multi-Material Challenges: Joining sheets of highly dissimilar materials with mismatched ductile properties requires specialized die designs to ensure proper interlocking.
• Alternative Joining Technologies: When lightweight materials exceed the physical limits of clinching, manufacturers typically utilize self-piercing riveting (SPR) systems.
• Industrial Applications: Clinching tools are widely used in HVAC sheet metal, white goods, and solar panel brackets, whereas high-strength automotive structures rely heavily on SPR systems.

In-Depth Analysis

Lightweight manufacturing relies on modern materials to reduce weight while maintaining structural integrity. However, joining these materials presents unique engineering challenges. A standard clinching gun operates by cold-forming the overlapping sheets into an interlock. When dealing with extremely hard or brittle lightweight materials, the material may fracture during this localized deformation process.

For demanding applications, manufacturers like PHOTON TECHNOLOGY KUNSHAN CO.,LTD develop advanced solutions to overcome these limitations. During a project in January 2025 for Benz in Fuzhou, engineers encountered highly challenging material combinations with super high strength. To resolve this, the engineering team conducted hundreds of tests, metallurgical analyses, and die modifications over a month to establish reliable joining parameters using both self-piercing riveting and rivetless clinching guns.

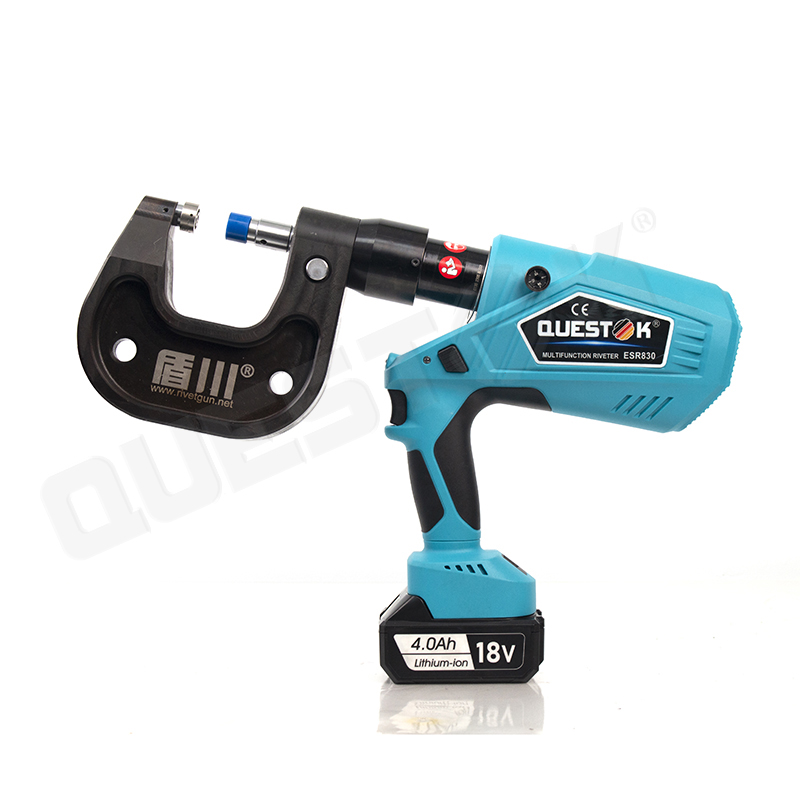

In less demanding sheet metal applications, such as HVAC ductwork, commercial kitchens, and solar panel brackets, portable clinching tools are highly effective. For instance, the Questok cordless portable clinching gun delivers an output pressure of 20-60kn. This tool provides a highly efficient, single-step joining process that requires no consumables, eliminating the need for post-clinch polishing or repainting.

Data / Solution Comparison

The table below compares the operational capabilities of standard clinching guns and self-piercing riveting (SPR) systems when handling lightweight materials:

Frequently Asked Questions (FAQ)

Final Conclusion & Recommendations

Standard clinching guns offer a cost-effective, consumable-free joining solution for ductile lightweight materials like aluminum and galvanized steel. However, for ultra-high-strength alloys or complex multi-material joints, extensive process testing or alternative SPR solutions are necessary. Questok supports ODM and OBM business models with a minimum order quantity of 1 set, providing standard delivery within 3 days and customized solutions within 15 days. Technical Support: jane@questok.com
