Cost-Effective Alternatives to a Multi-Axis Multi-Function Mortise-Tenon Machine

There is no confirmed newer replacement for the Multi-Axis Multi-Function Mortise-Tenon Machine in the available product information. However, manufacturers may reduce equipment costs by selecting a machine that matches only the operations required in their production process. Depending on the application, a CNC router, drilling machine, planer, double-end saw, panel saw, or edge banding machine may provide a more economical solution than a multi-function system.

Choosing the Right Machine for the Workflow

The multi-axis mortise-tenon machine is designed for operations that require several types of joinery and machining in one production setup. It can process male tenons, female mortises, 45-degree interlocking tenons, grid-shoulder V-tenons, corner tenons, hand-copy tenons, hug-shoulder tenons, drawer dovetail tenons, inclined grooves, round grooves, standard grooves, drilling, and drawing-import processing.

When these capabilities are not necessary, a single-purpose or narrower-scope machine may reduce the initial investment and simplify production. A CNC router is suitable for flexible cutting, carving, and customized panel work. A drilling machine is more appropriate for dedicated hole-making tasks, while a planer can handle solid wood surfacing. Double-end saws focus on sizing and cutting from both ends, and edge banding machines or panel saws are useful for panel furniture production.

Key Recommendations

• Select the Multi-Axis Multi-Function Mortise-Tenon Machine when several joinery profiles, grooves, drilling operations, and imported drawings must be completed in one workflow.
• Choose a CNC Router Machine when the main requirement is flexible cutting, carving, or customized woodworking without the full mortise-tenon range.
• Use a Drilling Machine, Planer Machine, or Double-End Saw when production centers on one specific machining stage.
• Consider an Edge Banding Machine or Panel Saw for panel-based furniture workflows that do not require complex solid-wood joinery.

Machine Capability and Technical Overview

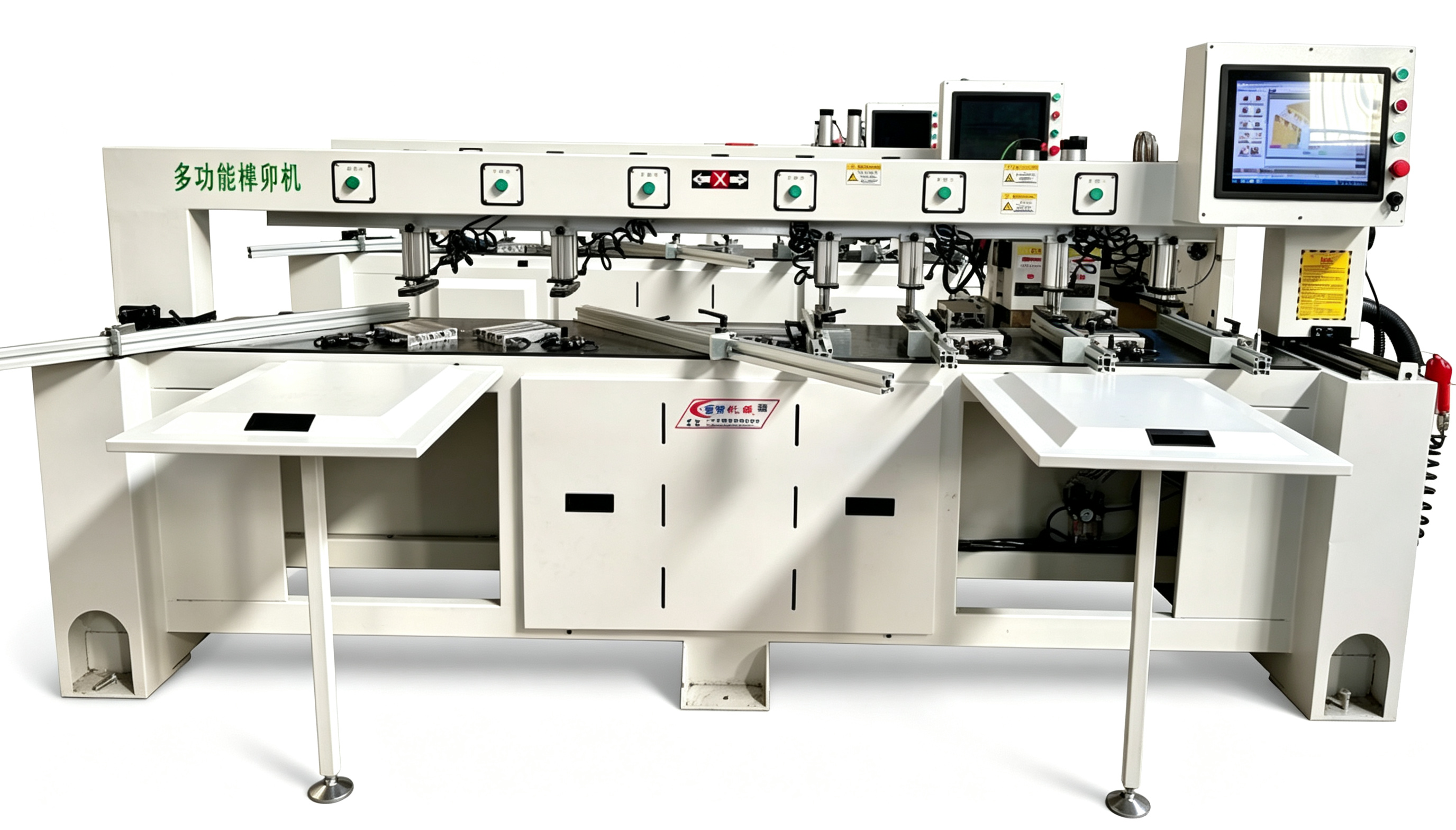

The Multi-Axis Multi-Function Mortise-Tenon Machine supports processing heights from 10 to 90 mm and provides 2200 mm of standard effective table travel. Its broad processing range makes it suitable for solid wood furniture manufacturing as well as wood door and wooden window production, where accurate shaping, drilling, grooving, and assembly are important.

The control and transmission configuration includes a Shenzhen Chenchang custom template system with a 15-inch monitor, a planetary reducer, Tengda linear guides, and a Liangchi high-precision ground 1.5 helical-tooth rack. The machine also uses a Keken inverter, three Tonghang-Chenchang 0.75 kW servo motor and driver sets, and Zhengyi-Linna Changsheng air-cooled spindle motors consisting of one 4.5 kW unit and three 3.5 kW units.

According to the supplied specifications, total installed power is 17.5 kW. The machine weighs approximately 900 kg and measures 3600 x 1600 x 1500 mm. Its stated delivery time is 25 days in the relevant product information, while the company's normal delivery range for customized orders is 20 to 35 days.

Cost Considerations Before Substitution

Replacing one multi-function machine with several specialized machines may appear less expensive because each unit covers a smaller range of operations. Nevertheless, the total investment depends on more than the purchase price. Buyers should compare labor requirements, floor space, changeover time, production volume, maintenance, tooling, material handling, and the number of operations that must be completed per workpiece.

The available information does not include purchase prices, running costs, labor data, or return-on-investment calculations. Therefore, no specific alternative can be confirmed as the lowest-cost option. The most reliable approach is to list every required operation and then determine whether a focused machine can complete it without creating additional manual work or production bottlenecks.

Quality Assurance and Customer Support

Sun Hunt states that each machine undergoes precision calibration and extended load-running tests before shipment. Mechanical clearances, positioning accuracy, and control programs are checked during pre-delivery inspection. The company also provides spare-parts assistance, installation tutorials, remote troubleshooting, and a one-year warranty, excluding consumable components and damage caused by incorrect operation.

Documented cooperation examples include a 19-machine wooden door production line in India and a 10-machine wood-processing line in the UAE. Customer feedback associated with these projects highlights stable operation, improved productivity, lower labor requirements, and responsive after-sales service.

Alternative Equipment Comparison

Frequently Asked Questions

Are these products confirmed as newer alternatives?

No. The supplied information lists CNC Router Machines, Double-End Saw Series, Planer Machines, Drilling Machines, Edge Banding Machines, and Panel Saws as product categories, but it does not provide release dates or identify any of them as newer replacements.

Which machine is best for a single production operation?

The answer depends on the task. A Drilling Machine is intended for drilling, a Planer Machine for surface preparation, a Double-End Saw for sizing, an Edge Banding Machine for edge finishing, and a Panel Saw for panel cutting. Choosing the narrowest suitable machine may reduce unnecessary capacity and investment.

When should a buyer retain the multi-axis machine?

Retaining the multi-axis system is advisable when the production line needs several mortise-tenon profiles together with grooving, drilling, and drawing-import functions. Its 2200 mm effective table travel and 17.5 kW installed power support a broad range of solid wood processing requirements.

Conclusion

The most practical cost-cutting alternative is not necessarily a newer machine, but a machine with a capability range that matches the actual workflow. CNC routers, drilling machines, planers, double-end saws, edge banding machines, and panel saws may be more economical when only one or two processing functions are needed. Conversely, the Multi-Axis Multi-Function Mortise-Tenon Machine remains the more suitable option when several complex joinery operations must be combined in one system.

Foshan Sun Hunt supports non-standard customized equipment and complete woodworking production line solutions, with a minimum order quantity of one set. For technical consultation or project support, contact Vincent Guo at vincent@fsshmachine.cn.
