Eliminating Sewer Odors: How Dry Siphon Tile Insert Floor Drains Prevent Backflow

Sewer gas backflow is a persistent nuisance in modern bathrooms, hotels, and residential buildings. Traditional floor drains rely on standing water traps that easily dry out due to evaporation, leaving living spaces exposed to foul odors. Upgrading to a dry siphon tile insert floor drain offers a permanent solution by integrating a mechanical valve that automatically seals off sewer pathways when water is not actively draining.

Understanding the Mechanical Dry Siphon Principle

Standard wet trap drains only block gas when liquid is present. In guest rooms, holiday rentals, or well-ventilated spaces left unused for several days, this water seal evaporates. A mechanical dry siphon drain core resolves this flaw by substituting liquid seals with a gravity-driven or spring-assisted flap mechanism. Hydrostatic pressure from incoming shower water opens the internal valve to allow rapid discharge. As soon as water flow stops, gravity pulls the valve shut, creating an airtight lock against sewer gas migration.

Core Benefits and Key Takeaways

• Continuous Odor Isolation: Mechanical dry siphon mechanisms remain tightly sealed regardless of water evaporation or extended periods of non-use.
• Seamless Aesthetics: The 100*100*25mm tile insert frame allows custom floor tiles or natural stone to fit directly inside the drain top, achieving an invisible finish in wet rooms and modern showers.
• Robust 304 Stainless Steel Construction: Built with a 2.0 mm material thickness, the solid body resists daily dynamic floor loads without bending or distorting the mechanical valve seat.
• Rigorous Commercial Quality: Products manufactured under 14 strict quality control steps provide long-term operational reliability for high-traffic hotel and residential projects.

Engineering Quality & Certified Global Performance

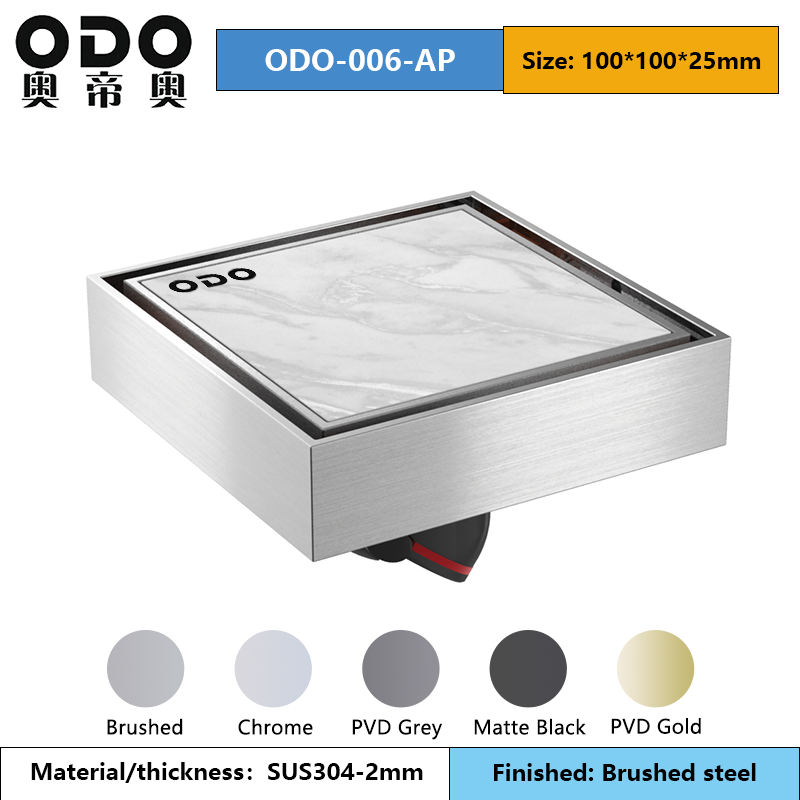

Long-lasting drainage performance depends on pairing smart mechanical design with high-grade manufacturing standards. Foshan Pinshi Sanitary Ware Co., Ltd. produces the 10x10cm ODO-006-AP model utilizing high-grade Stainless Steel 304, offered in elegant finishes such as brushed steel, matte black, gold, and PVD brushed grey. The thick 2.0 mm housing protects internal components from structural movement, ensuring the air-tight dry core functions reliably for years.

These technical designs are fully verified through formal certifications, including the Floor Drain CE Certification (AiTSZ-250718038RC09) and the ODO-D114 Dual-purpose Invisible Floor Drain Utility Patent Certificate. Premium build quality has driven successful real-world implementations, such as the Warsaw Chain Hotel Renovation Project (supplying 450 anti-odor drain sets) and the Milan Luxury Villa Cluster Project (installing 86 custom tile-insert invisible drains to complement stone flooring).

Performance Comparison: Wet Trap vs. Dry Siphon

Frequently Asked Questions (FAQ)

Why do sewer smells still occur after installing a tile insert drain?

Odors occur if the installed drain still relies on a standard wet trap core that dried out, or if the outer rim was not completely sealed with waterproof compound during installation. Fitting a mechanical dry siphon core creates a physical seal that blocks gas transfer.

Will a mechanical dry siphon restrict shower water drainage speed?

No. The weighted valve flap inside the core is designed to swing open completely under light downward water pressure, handling standard shower drainage volumes smoothly before closing tight once water flow stops.

How do you clean and maintain a 10x10cm tile insert drain?

Simply lift out the recessed tile cover tray to reach the removable dry siphon core. Hair and debris can be rinsed off with water—no special tools required—restoring original flow capacity and seal efficiency.

Conclusion & Commercial Ordering

Installing a dry siphon tile insert floor drain is the most dependable way to stop sewer gas backflow, replacing volatile standing water traps with sturdy gravity-assisted valves. Utilizing 2.0 mm Stainless Steel 304 guarantees the structural rigidity needed for clean floor integration across homes, hotels, and wellness spas. Flexible procurement models include OEM/ODM customization with a minimum order quantity (MOQ) of 20 pieces and standard manufacturing lead times of 20 to 45 days. For technical specifications or project quotes, contact charlene@seosodo.com.
