Evaluating Material Efficiency and Operational Precision in Modern Double-End Saw Technology

Introduction: Operational Precision in Modern Woodworking

Achieving consistent dimensional accuracy while minimizing operational downtime is a primary objective for contemporary panel and door manufacturers. Advanced Double-end Saw equipment incorporates high-torque electric spindles, servo-driven positioning systems, and dual-axis cutting configurations to improve material handling. While modern double-end saws offer clear structural mechanisms to limit miscuts and handling faults, evaluating their exact impact on material waste and tool wear requires analyzing their engineering features alongside factory production data.

Engineering Architecture and Cutting Dynamics

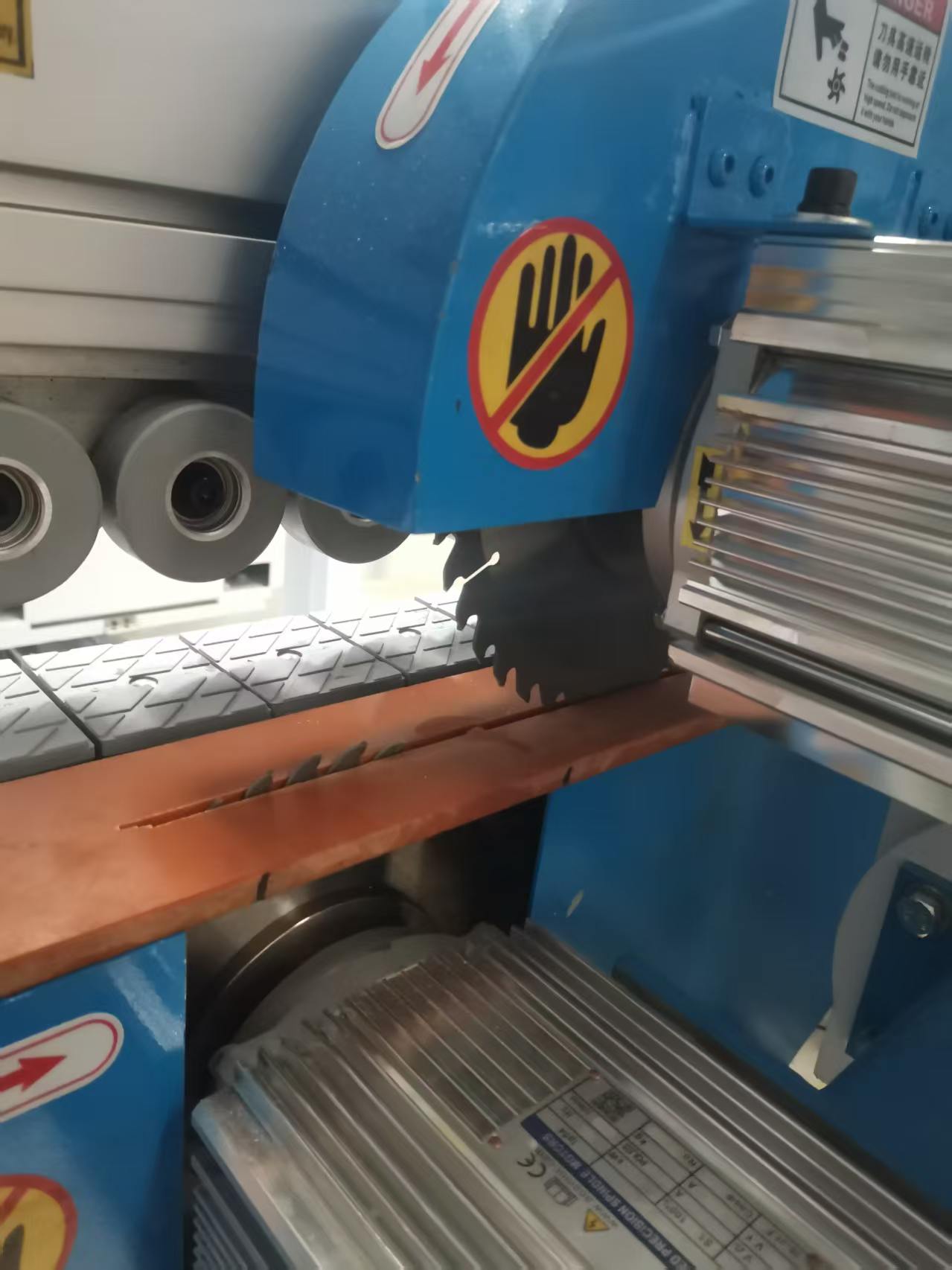

The technical design of modern double-end sizing machines relies on synchronized upper and lower cutting mechanisms to process panels from both sides seamlessly. A 4 kW electric spindle powers the top sawing unit, whereas the lower saw operates with a 2.2 kW explosion-proof spindle. Both units operate within a high-speed rotational range of 6000 to 8000 rpm, managed through frequency converter speed control to match diverse timber densities and processing needs.

Automated Width Control and Material Handling

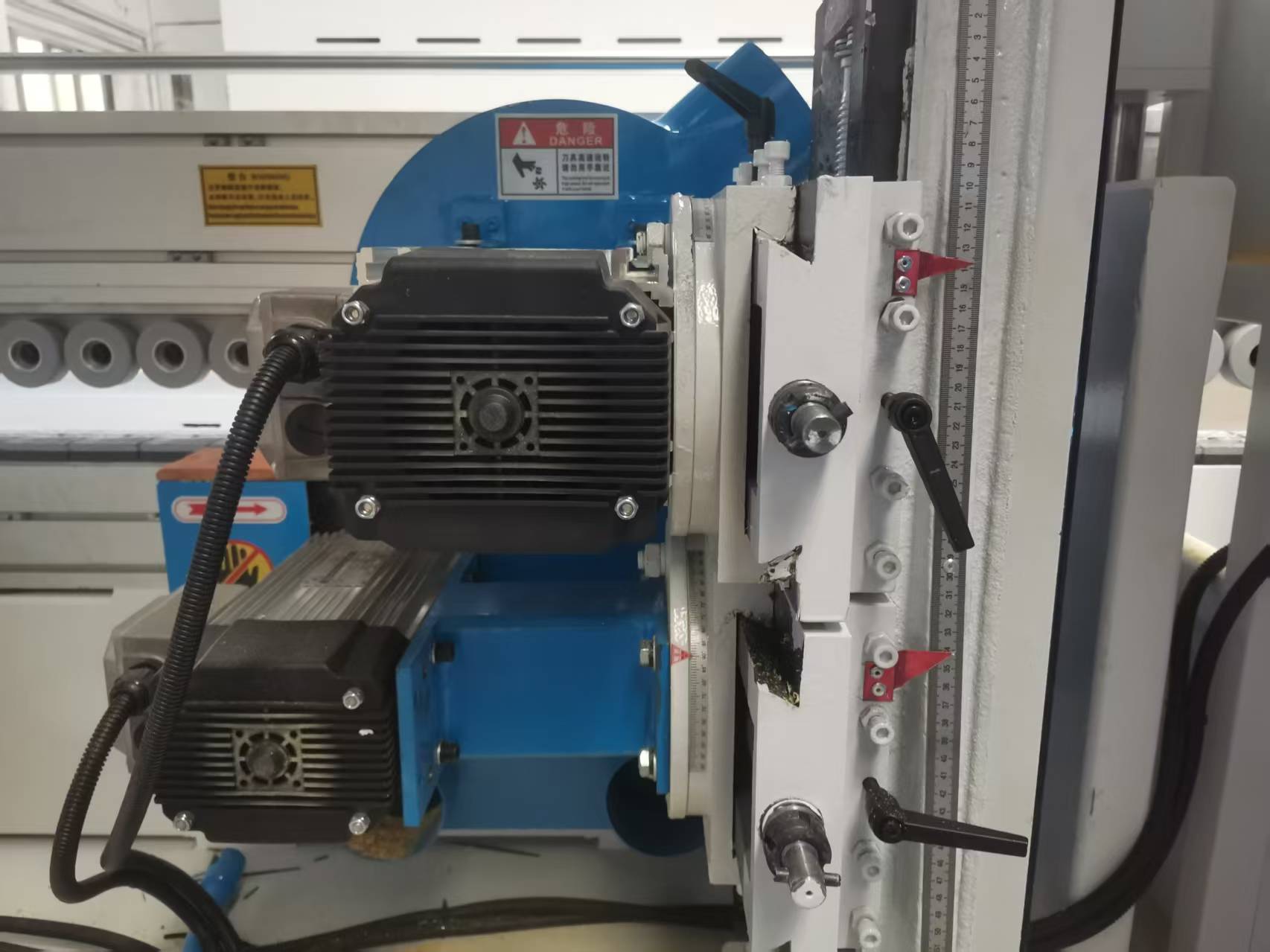

Manual alignment is replaced by high-precision motorized controls. The width adjustment mechanism relies on a dedicated servo motor paired with a precision ball screw and intuitive touch-screen interface, ensuring repeatable automated dimensional calibration.

To maintain workpiece stability throughout the cutting cycle, the machinery incorporates several key structural elements:

• Infeed Alignment: A dedicated positioning device at the entry point ensures straight feeding.
• Variable Feeding Speed: Driven by a 2.2 kW conveyor motor for optimized feed rates.
• Electric Clamping: Dual 750 W electric lifting units provide uniform downward pressing force.
• Servo Cutting Adjustment: Two 550 W servo motors backed by ball screws facilitate accurate cutting depth adjustments.
• Extended Support: A total of seven auxiliary support tables (configured in sets of four and three) stabilize long panels during transit.

Addressing Material Waste and Blade Wear Metrics

While the combination of automated positioning and rigid workpiece holding naturally minimizes miscuts—thereby mitigating unnecessary material waste—actual waste reduction percentages depend heavily on raw material consistency and setup accuracy. Similarly, direct savings on saw blade replacement costs cannot be universally claimed without empirical operational records, as blade service life depends on factors such as substrate composition, feed speeds, sharpening schedules, and blade metallurgy.

Factory Testing, Global Case Studies, and Versatile Applications

Prior to dispatch, manufacturer quality control standards involve thorough precision calibration alongside extended load-running tests. These evaluations verify control programs, transmission tolerances, and mechanical clearances so that equipment arrives ready for immediate integration with minimal site recalibration.

This design serves high-demand production sectors including panelized furniture, custom home cabinetry, wooden doors, timber window frames, and wood-aluminum composite systems. Successful implementations include a 19-machine automated line for a door producer in India and a 10-machine processing facility in the UAE, both demonstrating reliable line integration and ongoing operational stability.

Technical Feature and Benefit Breakdown

Frequently Asked Questions

How does a double-end saw contribute to waste reduction?
By replacing manual adjustment with servo-driven ball screws and touch-screen controls, the machine provides precise sizing and stable material clamping, significantly reducing cutting errors caused by shifting workpieces.

Can lower blade replacement costs be guaranteed?
While stable feed systems and optimized spindle speeds create ideal cutting conditions, actual blade wear and maintenance costs vary based on material hardness, blade grade, and production schedules, requiring verification through production trials.

What are the primary target industries for this machine?
The double-end saw is designed for processing panel furniture, custom cabinetry, interior wood doors, architectural windows, and wood-aluminum composite joinery requiring consistent batch dimensions.

Conclusion & Vendor Highlights

Modern Double-end Saw solutions offer robust mechanical features to support consistent cutting quality and waste reduction. Buyers seeking to optimize their wood processing workflows are advised to conduct material-specific trials to gauge precise operational economies. Minimum orders start at one set, with typical manufacturing lead times ranging from 20 to 35 days. For customized machinery specifications or technical guidance, contact vincent@fsshmachine.cn.

About Sun Hunt Machinery

Foshan Sun Hunt Woodworking Machinery Co.,Ltd. (Sun Hunt Machinery) has been a dedicated developer and manufacturer of industrial woodworking equipment since 2014. Operating out of a 2,000 m² production facility, the company maintains a monthly capacity of 50 medium-sized units (600 annually). Supplying clients across North America, the Middle East, and Africa, Sun Hunt offers an extensive catalog including CNC routers, double-end saws, planers, gang drills, edge banders, and precision panel saws.
