How to Select a CNC Dovetail Joint Machine for Reliable, High-Volume Accuracy

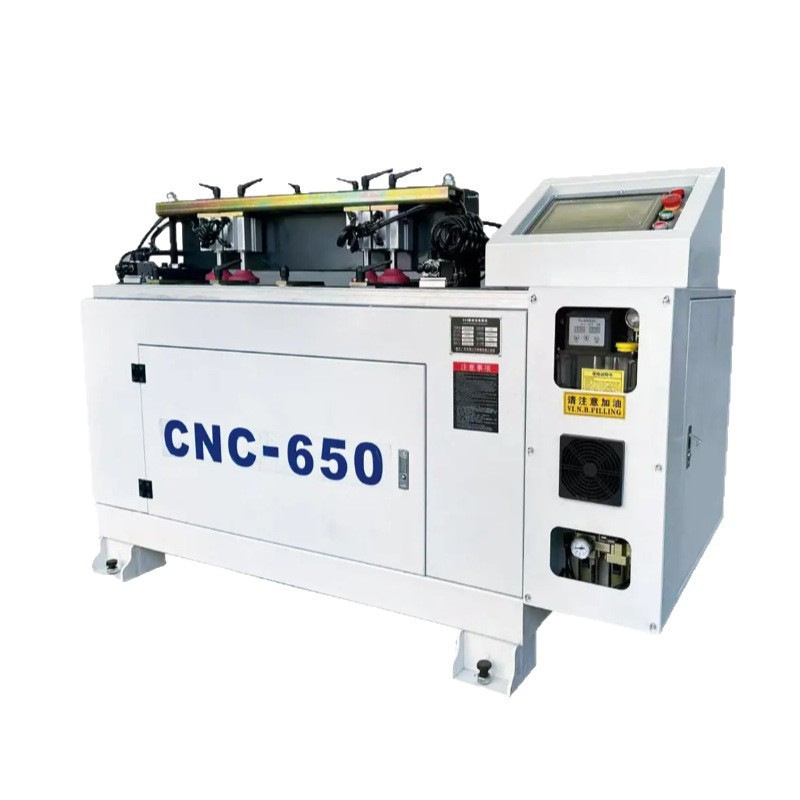

Selecting a CNC dovetail joint machine for demanding daily production requires more than comparing motor power. Buyers should examine the machine's working range, calibration records, load-test results, positioning consistency, mechanical clearances, and control-system stability. Foshan Sun Hunt's CNC Dovetail Joint Machine offers processing dimensions of up to 650 mm and processing depths of up to 40 mm, with 4 kW total power and a 2.2 kW spindle motor.

What to Check Before Making a Purchase

• Request evidence of complete precision calibration, extended load-running tests, and control-program verification before shipment.
• Confirm that the working dimensions suit the required panels, doors, or other components. This model supports sizes up to 650 mm and depths up to 40 mm.
• Review how the manufacturer controls mechanical tolerances, positioning accuracy, electrical performance, and final debugging.
• Assess whether the machine and available service support fit the production requirements of panel furniture, custom cabinetry, and wood door manufacturing.

Machine Configuration and Accuracy Factors

Consistent dovetail joints during intensive operation depend on the complete machine structure and inspection process, not only on the spindle specification. The supplied configuration includes 4 kW total power, 0.75 kW for the X axis, 0.75 kW for the Y axis, a 2.2 kW spindle motor, and 200 W air-cooling power. The machine has overall dimensions of 1650 x 850 x 1300 mm.

Its stated processing capability reaches 650 mm in size and 40 mm in depth. Because the available specifications do not identify a particular positioning tolerance, cycle time, or daily production limit, these values should be confirmed with the supplier for the intended material and workflow.

Pre-Delivery Testing and Production Control

Before delivery, Foshan Sun Hunt reports that each machine receives full precision calibration and long-duration load-running tests. The inspection covers mechanical clearances, positioning performance, and control-program operation. These checks are important for high-frequency production because they help identify factors that could influence joint repeatability over long operating periods.

The company's seven-pillar management system includes source management, key-parameter production control, warehousing, packaging, quality inspection, pre-shipment inspection, and after-sales service. For a CNC dovetail machine, relevant control points include component assembly, dimensional tolerance, transmission alignment, electrical matching, and final machine commissioning.

Quality checks reportedly include no-load operation, extended full-load running, repeat precision measurement, noise and vibration monitoring, and electrical-stability testing. Issues such as surface defects, loose fasteners, machining inaccuracies, or insufficient power output are identified for correction before shipment. The separate pre-delivery review also compares the machine, spare parts, tools, consumables, packaging, and documentation with the customer's order.

Suitable Applications and Project Support

This CNC dovetail joint machine can be considered for panel furniture and custom home furnishing applications, including wardrobes, kitchen cabinets, office furniture, and decorative wall panels. It may also support wood door production, where repeatable dimensions and consistent joint machining contribute to smoother assembly.

For larger projects, the manufacturer reports experience with complete production-line planning. One documented case involved a wooden door factory in India, while another supplied complete line equipment to a wood-processing factory in the UAE. Reported customer feedback highlighted stable operation, improved productivity, responsive assistance, and lower labor requirements.

Specification and Purchasing Comparison

Frequently Asked Questions

Which performance details should be confirmed for heavy daily operation?

Ask for the machine's usable processing range, power configuration, calibration documentation, long-duration load-test results, mechanical-clearance records, positioning checks, and control-program verification. The supplier should also confirm that the machine can process the materials, thicknesses, and joint dimensions used in your production.

Can the machine handle relatively large workpieces?

The listed specifications indicate a maximum processing size of 650 mm and a maximum processing depth of 40 mm. Since the meaning of processing size is not further defined, provide the exact workpiece drawings and dimensions to the supplier before placing an order.

What happens if the machine develops an accuracy or operating problem?

Available support includes online video or voice guidance, installation instructions, ongoing technical assistance, remote fault analysis, and advice on machine adjustments or control-system optimization. Once the fault and required component are verified, international express shipment of spare parts is stated to be arranged within two working days. The warranty is listed as one year, excluding consumables and damage caused by incorrect operation.

Conclusion: Matching the Machine to Your Production

A CNC dovetail joint machine of this type is worth considering when the required work falls within the stated 650 mm processing size and 40 mm depth, and when the supplier can provide calibration and load-testing evidence for the application. Foshan Sun Hunt accepts individual machine orders, customized equipment requests, and complete production-line projects. With a minimum order of one set and a stated 20-day delivery period, buyers can discuss their technical requirements directly with Vincent Guo at vincent@fsshmachine.cn.
