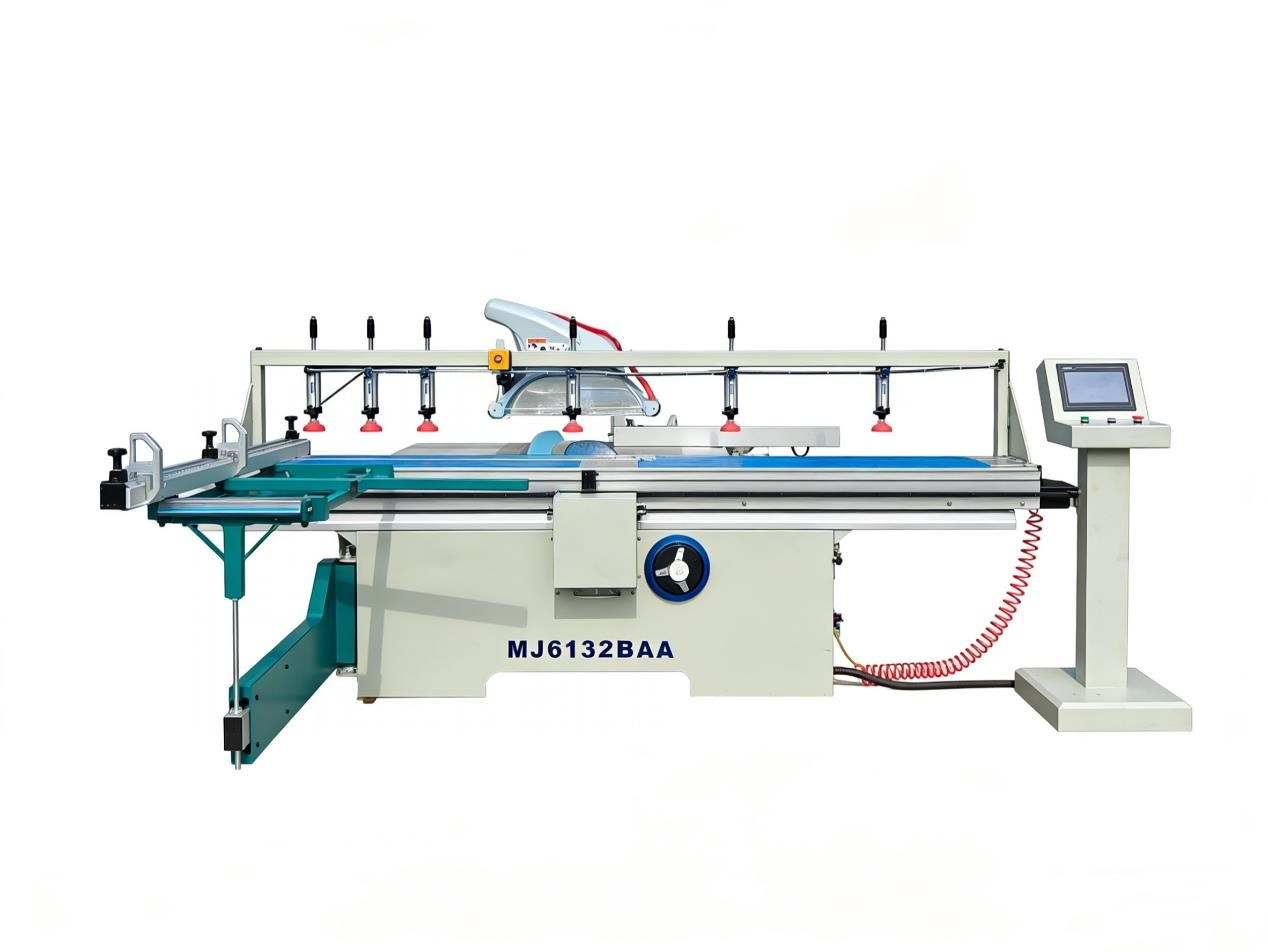

How to Select a CNC Fully-Automatic Sliding Table Saw for Precise, Reliable Production

Selecting the right CNC fully-automatic sliding table saw requires more than comparing prices. Buyers should evaluate cutting dimensions, motor power, automation, guide and spindle components, installation requirements, and quality-control procedures. Foshan Sun Hunt's CNC Fully-Automatic Sliding Table Saw combines CNC operation, pneumatic clamping, a 5.5 kW main saw motor, a 1.1 kW scoring motor, imported NKF spindle bearings, and pre-shipment load testing for consistent panel processing.

Important Selection Criteria

A suitable machine should match the materials, panel sizes, production volume, and workflow of the factory. The following specifications are particularly important when assessing this model:

• Cutting capacity: The saw provides a maximum cutting length of 3000 mm and a maximum cutting thickness of 80 mm, covering many panel furniture and woodworking requirements.
• Automated operation: CNC control supports repeatable processing, while the pneumatic clamp helps hold workpieces securely during cutting.
• Drive configuration: The machine is equipped with a 5.5 kW main saw motor, a 1.1 kW scoring saw motor, a linear motor lift with four sliders, and a 390 × 228 Gaoshida European-type guide rail.
• Application compatibility: It is designed for panel-based production such as wardrobes, kitchen cabinets, office furniture, and decorative wall panels.

How the Cutting System Works

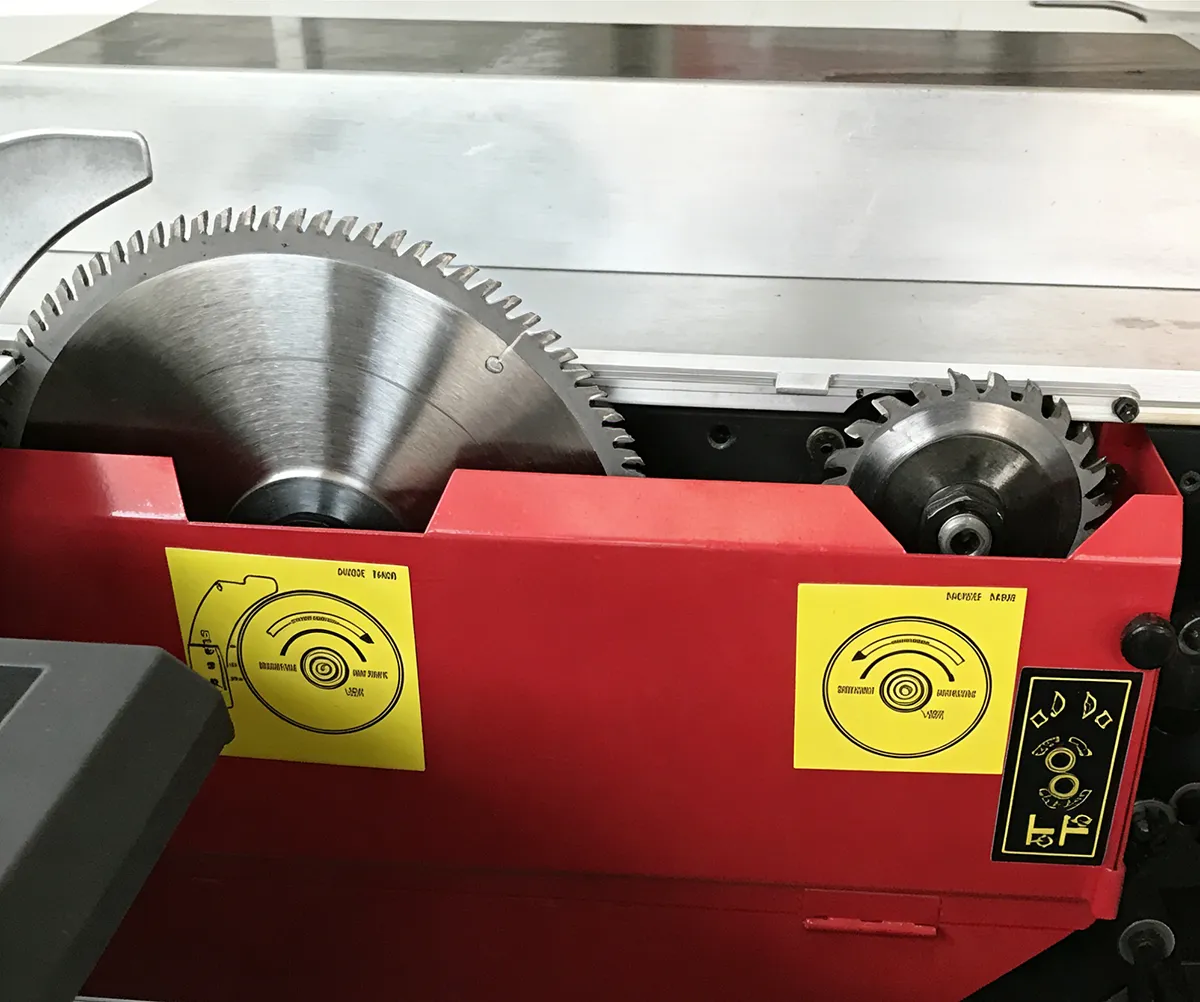

The equipment uses a main saw and a scoring saw to process panels efficiently. The main spindle runs at either 4000 or 5000 rpm, while the scoring spindle operates at 8000 rpm. The listed main blade options include a 300 × 30 mm blade and a 305 × 30 × 3.2 × 96T configuration. The scoring blade specification is 120 × 20 mm.

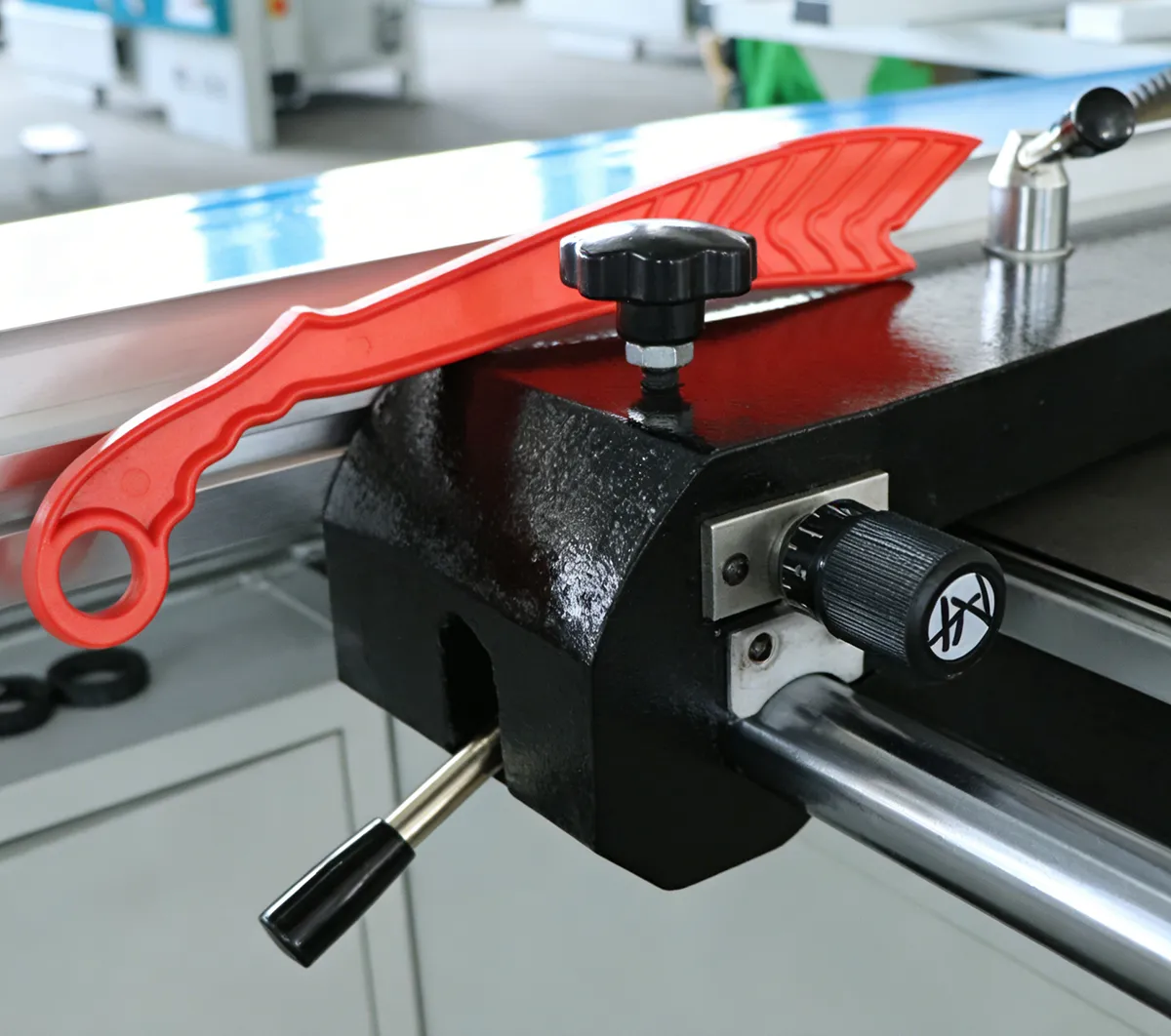

Stable cutting also depends on the relationship between the spindle shaft, bearings, guide rail, and lifting mechanism. Sun Hunt specifies imported NKF spindle bearings and a heat-treated, tempered 45# steel spindle shaft. The motor lift uses a linear guide supported by four sliders, helping maintain controlled vertical movement during adjustment and operation.

Control, Layout, and Quality Assurance

Electrical components should be reviewed alongside mechanical specifications. This machine uses Tianzheng electrical parts and Schneider buttons. Its stated dimensions are 3200 × 1200 × 900 mm, and its weight is approximately 800 kg. These figures should be included in workshop layout, transport, foundation, and material-handling plans.

Pre-delivery inspection is another factor that can affect long-term production stability. Sun Hunt states that each machine receives full precision calibration and extended load-running tests before shipment. The inspection process includes checking mechanical clearances, positioning accuracy, control programs, noise, vibration, and electrical stability, followed by precision remeasurement and adjustment where necessary.

The supplier also describes a quality system covering material-source control, production monitoring of key parameters, QC inspection, and final pre-shipment checks. This type of process gives buyers additional information when comparing machinery for continuous or integrated production.

Project Experience and Purchasing Options

Reported installations include a 19-machine wooden door production line in India and a 10-machine wood-processing line in the UAE. According to the supplied project information, customers noted stable operation, higher productivity, responsive service, and the supplier's ability to support complete line planning.

Buyers requiring a customized arrangement can request non-standard equipment and broader production-line solutions. The minimum order quantity is one set. Standard business-model delivery is stated as 20–35 days, while the product listing gives a 20-day delivery time for this sliding table saw.

Specification Comparison

Frequently Asked Questions

Which production applications are suitable for this saw?

The machine is positioned for panel processing and furniture manufacturing, including wardrobes, kitchen cabinets, office furniture, and decorative wall panels. Buyers should still confirm material compatibility through cutting trials based on panel composition, blade selection, edge-quality requirements, and production speed.

Which features help maintain cutting consistency?

The stated configuration includes imported NKF spindle bearings, a heat-treated and tempered 45# steel spindle shaft, a European-type guide rail, a linear-guided motor lift, CNC control, and pneumatic clamping. Sun Hunt also reports precision calibration and long-duration load testing before shipment.

What service is available after installation?

After-sales support includes online video or voice guidance, installation tutorials, permanent technical assistance, remote fault diagnosis, and spare-parts delivery within two working days after the required part is confirmed. Overseas engineer visits and local technician support may be available in selected regions. The stated warranty lasts one year, excluding consumable components and damage caused by incorrect operation.

Buying Recommendation

This CNC fully-automatic sliding table saw is worth considering when a production line needs automated CNC control, pneumatic workpiece clamping, a 3000 mm cutting length, and an 80 mm cutting thickness. Before placing an order, confirm the panel materials, electrical supply, workshop space, machine handling arrangements, and integration requirements for the complete line. Sun Hunt accepts single-set orders, supports non-standard customization, and can provide complete production-line planning. For technical consultation, contact Vincent Guo at vincent@fsshmachine.cn.
