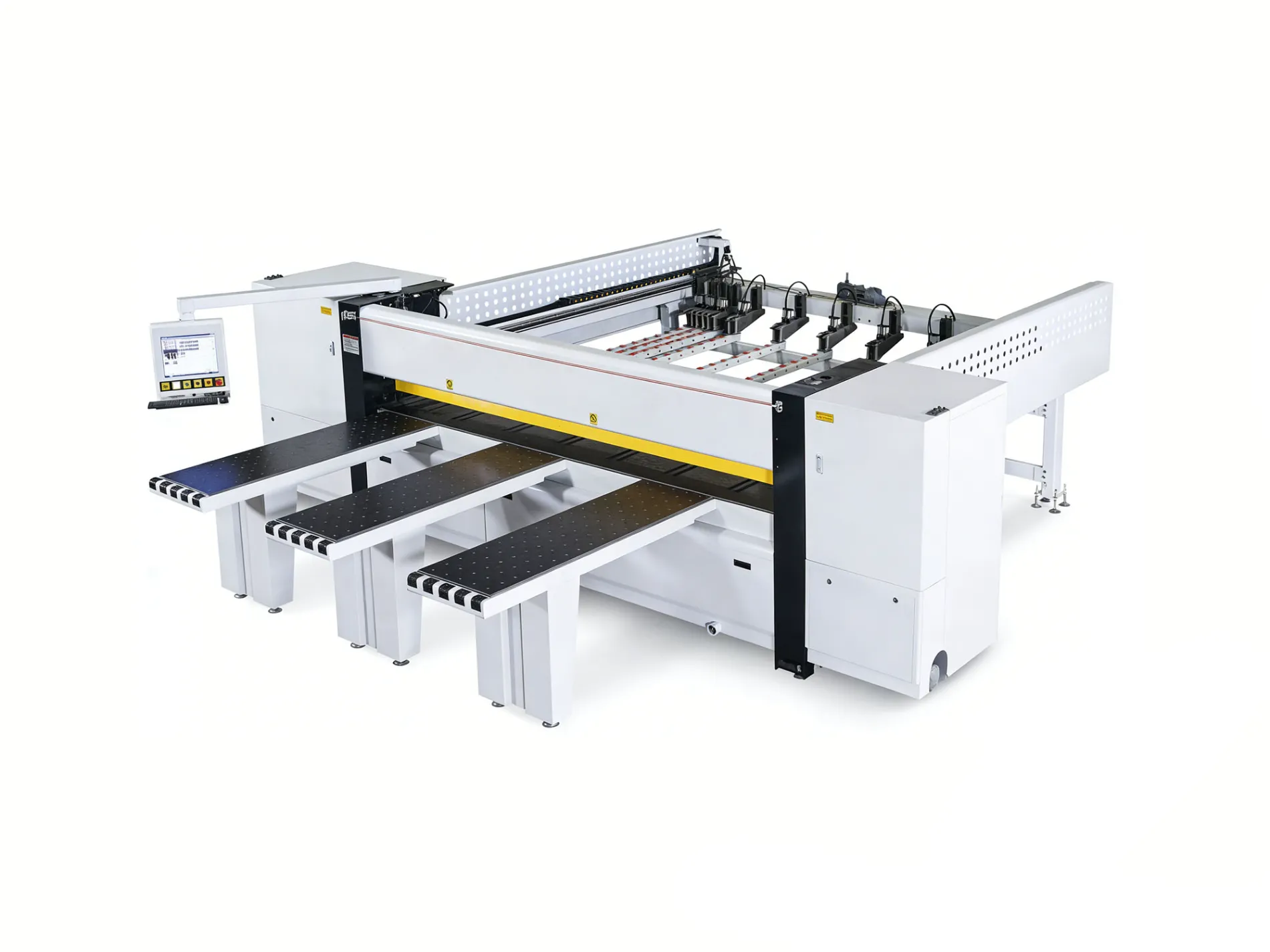

How to Select a Computer Panel Saw for Precise and Reliable Cutting

Selecting the right Computer Panel Saw starts with matching its working range and configuration to your production needs. Important factors include panel size, cutting thickness, motor output, feeding control, machine rigidity, air requirements, and available installation space. This model combines a 3300 mm cutting length, 90 mm maximum cutting thickness, 16 kW main saw motor, automatic feeding, air flotation, and pre-shipment precision testing for dependable panel processing.

Key Selection Points at a Glance

• Confirm that the 3300 mm cutting length and 90 mm cutting thickness cover the panels used in your workflow.
• Assess cutting performance through the 16 kW main motor, 5800 rpm main blade speed, 6800 rpm scoring blade speed, and documented calibration procedures.
• Use the automatic feeding system, with a speed range of 0–100 m/min, to improve material-handling consistency in production.
• Consider this equipment for panel furniture, custom home furnishing, display cabinets, exhibition props, and architectural millwork.

Configuration and Operating Principles

Cutting Capacity and Blade Arrangement

The machine is designed for high-volume panel sizing and provides a 3300 mm cutting length with a maximum cutting thickness of 90 mm. The main saw accepts a 355 mm or 405 mm blade and uses a 30 mm shaft. A 180 mm scoring blade with a 30 mm shaft helps support clean, controlled panel cuts.

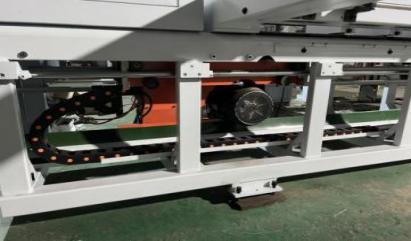

Drive System and Material Feeding

The primary cutting operation is powered by a 16 kW motor. Additional power comes from a 2.2 kW saw-base drive motor, a 1.5 kW automatic feeding motor, and a 3 kW high-pressure blower motor, giving the machine a stated total power of 22.5 kW.

The saw base moves forward at a stepless speed of 0–120 m/min and returns at 30–120 m/min. Automatic feeding can be adjusted from 0–100 m/min, allowing operators to select a suitable material movement rate for different production conditions.

Stability, Utilities, and Installation

Stable operation is supported by an exhaust fan and air flotation table, which help manage dust and panel movement during processing. The specified operating air pressure is 8KG. With a machine weight of 5200KG and dimensions of 5900×6300×1750mm, buyers should verify floor capacity, workshop layout, air supply, and electrical requirements before ordering.

Quality Assurance Before Shipment

Before delivery, the equipment undergoes full precision calibration and extended load-running tests. The inspection process covers mechanical clearances, positioning accuracy, control programs, overall dimensions, material quality, operating performance, surface condition, electrical stability, noise, vibration, and general machine operation.

Sun Hunt Machinery has also supplied complete woodworking production solutions. One project in India included 19 machines for a new wooden door factory, where the customer reported consistent operation, fewer failures, lower labor costs, and improved product quality. A 10-machine wood processing line delivered in the UAE was likewise reported to provide stable performance, high productivity, and responsive after-sales service.

Specification Comparison for Buyers

Frequently Asked Questions

What is the cutting capacity of this Computer Panel Saw?

The machine offers a 3300 mm cutting length and can process material up to 90 mm thick.

Which factors indicate whether the machine will cut stably?

Buyers should review the motor configuration, blade speeds, feed-speed range, air requirements, machine weight, dimensions, and quality-control records. This model is calibrated and tested under extended load conditions before shipment.

What after-sales assistance is provided?

Available support includes online video or voice guidance, installation tutorials, permanent technical assistance, spare-parts arrangements within 2 working days after the fault and required part are confirmed, possible local technician service in selected regions, a one-year warranty, equipment upgrades, and maintenance guidance. Consumables and damage caused by incorrect operation are not covered by the warranty.

Purchase Recommendations and Delivery

For accurate and repeatable panel sizing, select a configuration that fits the required panel dimensions, thickness range, production speed, air supply, electrical capacity, and workshop layout. The minimum order quantity is 1 set, with a stated delivery time of 30 days. Sun Hunt Machinery can provide non-standard customized equipment and complete production lines, while normal delivery for business-model orders is stated as 20–35 days. For technical consultation, contact Vincent Guo at vincent@fsshmachine.cn.

About Sun Hunt Machinery

Foshan Sun Hunt Woodworking Machinery Co.,Ltd., also known as Sun Hunt Machinery, develops and manufactures woodworking equipment for a variety of processing applications. Founded in 2014, the company operates a 2,000-square-meter factory with dedicated management and R&D personnel. Its stated management system covers source control, key-parameter production management, warehousing, packaging, quality inspection, pre-shipment inspection, and after-sales service. The company serves customers across several woodworking industries.
