How to Select a Tile Insert Floor Drain for Proper Size, Flow, and Waterproofing

Selecting a tile insert floor drain requires more than matching the visible cover to the bathroom design. The opening must suit the tile layout, the drain must meet the required water-discharge rate, and the body, outlet, membrane connection, and seals must work together as a waterproof floor system. The ODO-006-JP is available in a standard 100 × 100 × 25 mm format, supports customized dimensions, and can be supplied in finishes such as brushed gold.

Selection Priorities at a Glance

• Coordinate the drain opening with the tile module, tile thickness, available floor depth, and outlet location. The standard ODO-006-JP size is 100 × 100 × 25 mm, while customized dimensions are available.
• Do not estimate drainage capacity from the cover design. The project engineer or supplier should confirm the required flow rate for the shower, wet room, balcony, or other application because the supplied product information does not include a numerical flow-rate value.
• Evaluate waterproofing as a complete assembly. The drain body, outlet, waterproof membrane, tile insert, and sealing method must be compatible. Stainless steel 304 is specified, but no independent waterproofing rating is provided in the available data.
• The product is listed for residential bathrooms, shower and wet rooms, hotels, luxury villas, balconies, outdoor patios, and commercial buildings.

How to Match the Drain to the Floor Design

Check dimensions before ordering

A tile insert drain should align cleanly with the surrounding tile joints and fit within the prepared floor opening. Before confirming the order, measure the opening, tile thickness, structural floor depth, drain body height, and outlet position. The ODO-006-JP has a listed height of 25 mm and a standard footprint of 100 × 100 mm. Its customization option can support project-specific layouts, but the final size should always be checked against approved construction drawings.

Confirm the actual drainage requirement

The correct drain needs to remove incoming water quickly enough to prevent pooling in the finished floor. Required capacity depends on factors such as the number of shower outlets, expected water supply, outlet pipe arrangement, floor slope, and available installation height. Since the supplied ODO-006-JP data lists no flow-rate figure, request project-specific confirmation from the supplier or engineer before purchase. Written performance information is especially important for large wet rooms, hospitality projects, and commercial installations.

Review waterproofing at every connection

Water resistance is determined by the interaction of the complete floor assembly rather than by the surface finish alone. Confirm how the drain body joins the waterproof membrane, how the outlet is connected, how the tile insert is seated, and which sealing materials are required. Stainless steel 304 is listed as the construction material. However, the available product data does not identify a standalone waterproofing test result, anti-odor rating, or drainage performance, so these specifications should be verified in writing for the intended installation.

Finish Options and Project Applications

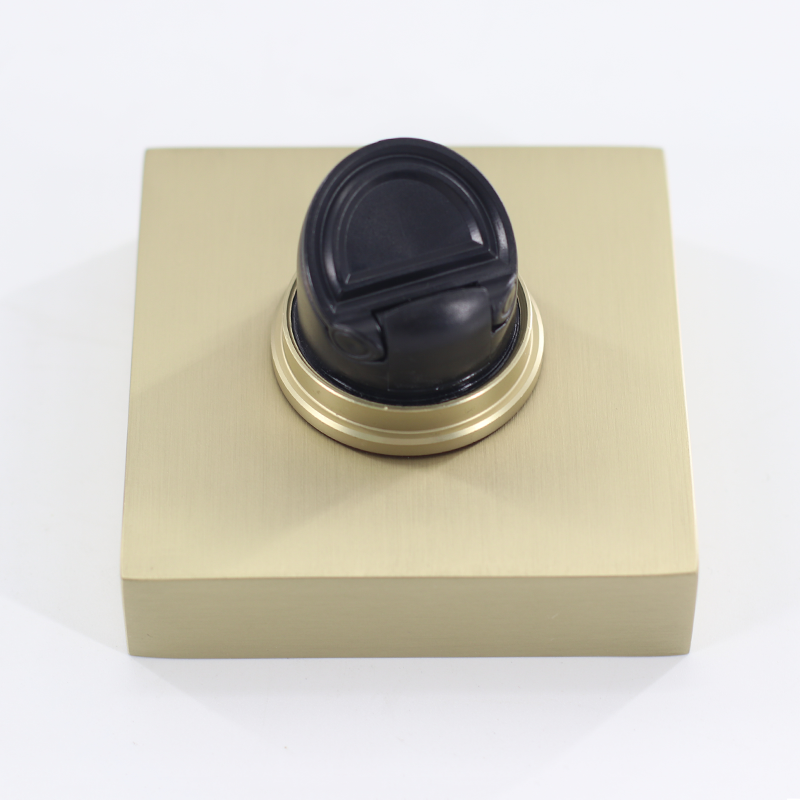

ODO-006-JP can be coordinated with different bathroom hardware styles through finishes including brushed steel, PVD brushed grey, brushed gold, brushed black, baked lacquer, and chrome. Choose a finish that matches the faucets, shower fittings, and other visible accessories. For coastal, outdoor, or high-humidity locations, confirm that the selected finish is suitable for the expected environmental conditions.

ODO floor drain projects include a Milan luxury villa cluster using tile-insert invisible drains and a Muscat seaside resort using waterproof, anti-corrosion drains. These applications show use in residential and humid resort environments, but they should not be treated as confirmation of the exact drainage or waterproofing performance of every ODO-006-JP configuration.

Listed credentials include the “Floor drain CE AiTSZ-250718038RC09-CE-ROHS” certificate and the “ODO-D114 Dual-purpose Invisible Floor Drain Utility Patent Certificate.” Confirm the applicable model information before assuming that a certificate or patent covers a specific product configuration.

ODO-006-JP Specification Guide

Frequently Asked Questions

How do I determine the right size for a tile insert drain?

Begin with the floor opening and the planned tile pattern. The ODO-006-JP standard format is 100 × 100 × 25 mm, with customization available. Verify the selected dimensions against tile thickness, floor buildup, drain depth, and outlet alignment before ordering.

Where can I find the drainage rate?

The supplied product information does not state a numerical flow rate. Share the installation area, expected water source, outlet configuration, floor height, and required performance with the supplier or engineer, then obtain written confirmation.

Is waterproofing guaranteed by the drain itself?

No standalone waterproofing rating or test result is stated in the available data. Effective waterproofing depends on the drain body, outlet connection, membrane interface, tile insert, slope, and sealing procedure being installed as a compatible system.

Practical Recommendation

Choose the ODO-006-JP by first matching its 100 × 100 × 25 mm standard dimensions, or an approved customized size, to the tile and floor assembly. Next, confirm the required drainage capacity separately because no flow-rate value is published. Finally, approve the waterproofing details for the full drain-to-membrane and outlet connection before installation. The product supports OEM and ODM service, has a listed MOQ of 20 pieces, and is manufactured under 14 strict QC processes. For technical assistance, contact charlene@seosodo.com.
