How to Select a UV Flatbed Printer for Mixed Materials and Everyday Production

Selecting a UV flatbed printer for daily production requires more than comparing print speed alone. The right machine should match the materials you process, the size and thickness of your products, your required image quality, and the level of technical support available after installation. For businesses producing signs, décor items, crafts, packaging samples, or customized rigid products, a flexible substrate range is especially important.

Key Factors When Choosing a UV Flatbed Printer

A practical UV printer should handle the material mix used in your actual orders. The Nocai NC-UV2513-II is specified for printing on acrylic, metal, wood, PVC board, signage, glass, leather, ceramics, and cardboard. This compatibility allows one machine to support a broad selection of rigid and specialty applications rather than limiting production to a single substrate category.

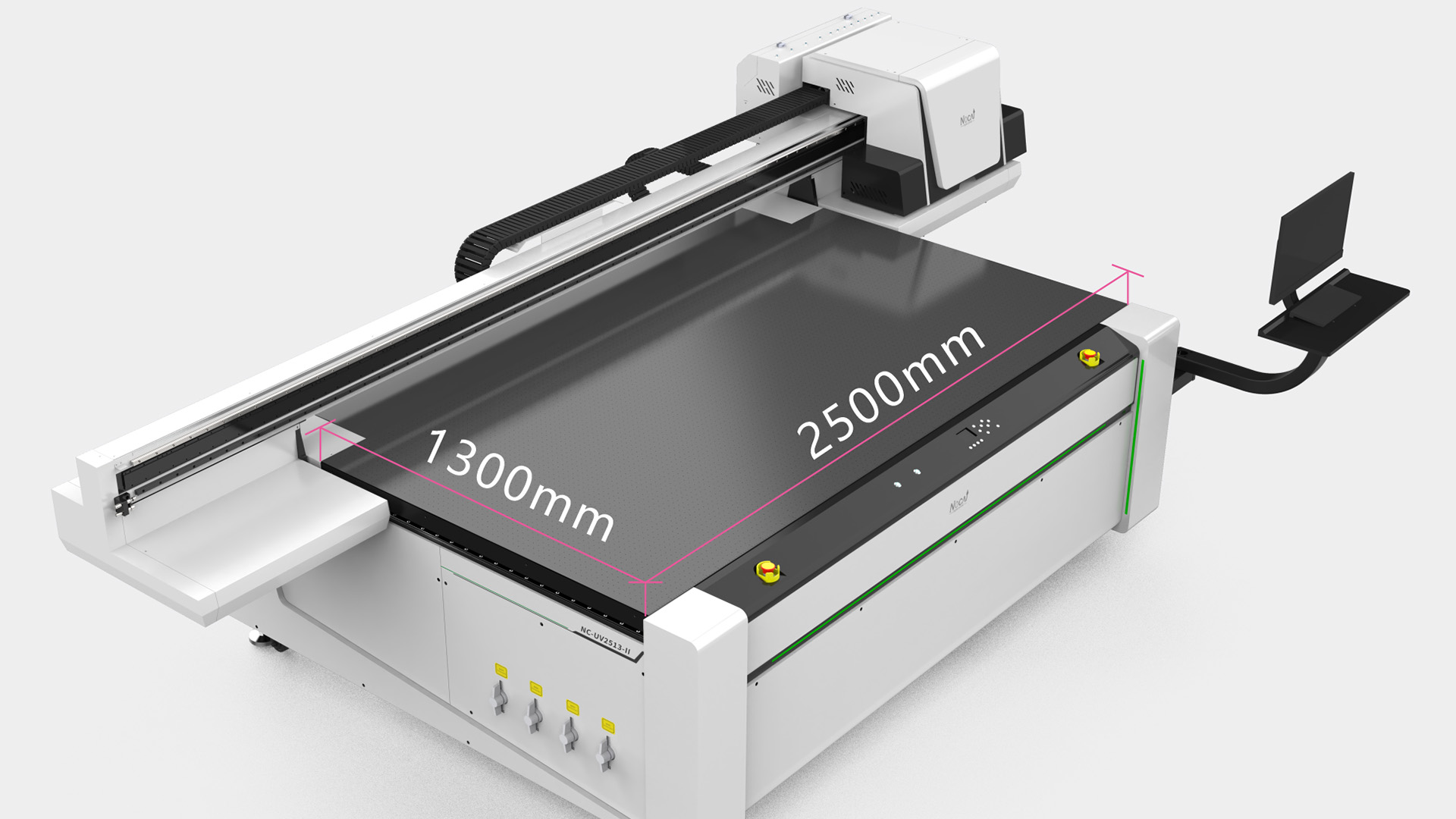

Before purchasing, measure the largest products your business expects to print. The NC-UV2513-II provides a 2500 x 1300 mm printing platform and supports adjustable material heights from 0 to 100 mm. These dimensions can accommodate large boards, decorative panels, display components, and many customized products with varying thicknesses.

Print Quality and Output for Routine Orders

Image quality is a major consideration for applications containing small letters, detailed artwork, gradients, or complex decorative patterns. The NC-UV2513-II is equipped with eight Epson I3200-U1 printheads and is listed with a maximum resolution of 1800 dpi. This configuration is intended to support sharp fine lines and detailed graphic reproduction across different materials.

Production capacity should also be evaluated alongside quality requirements. With a stated output of 10 m²/h, the machine is positioned for regular production tasks where businesses need to balance turnaround time with print detail. Actual output can vary according to print mode, artwork coverage, material setup, and finishing requirements.

Stable Construction for Mixed-Material Printing

When printing repeatedly on boards, glass, metal sheets, and other rigid substrates, mechanical stability contributes to consistent positioning and print quality. The NC-UV2513-II features an all-steel frame, dual-leadscrew Y-axis transmission, and silent guide rails. According to the listed design features, this structure supports stable movement, printing accuracy, reduced operating noise, and long-term equipment use.

Efficient operation is equally important for a busy workshop. The printer uses a simplified software interface for importing design files, while automatic ink carriage lifting and printhead moisture-retention functions are designed to make routine operation and maintenance easier. Supported Color-White-Color/Varnish and White-Color/Varnish modes can be used for effects such as textured embossing, mirrored graphics, and backlit visual displays.

NC-UV2513-II Specification Overview

Applications and Service Considerations

The stated applications for the NC-UV2513-II include advertising production, craft manufacturing, and home décor. Nocai also offers solutions for packaging and label-related industries. A printer with this type of application range may help businesses expand product offerings while keeping mixed-material work within one production workflow.

Technical support is a significant part of equipment selection, particularly for businesses installing a printer for the first time. Listed service resources include online support, video calls, remote assistance, user manuals, installation videos, and spare-part replacement videos. The product is also listed as having completed aging testing and 100% inspection before delivery.

Nocai states that its ISO certification covers the design and production of digital printers. CE certification is listed for selected Nocai models, including NC-UV0406 and other specified products. The company also reports cooperation with agents and sole agents in India, Poland, Turkey, Malaysia, Indonesia, and Korea, with feedback referencing equipment stability, print quality, after-sales service, and performance across different substrates.

Frequently Asked Questions

Can the NC-UV2513-II print on several different materials?

Yes. The listed supported materials include acrylic, metal, wood, PVC board, signage, glass, leather, ceramics, and cardboard.

What is the maximum printing area of this UV flatbed printer?

The machine has a specified print area of 2500 x 1300 mm. Its print height is adjustable from 0 to 100 mm, subject to the product specifications and material setup requirements.

What support is provided after delivery?

Available listed support includes online service, video calls, remote control, user documentation, installation guidance videos, and spare-part replacement videos.

Conclusion: Choosing the Right Machine for Your Workflow

For mixed-material UV printing, compare substrate compatibility, platform dimensions, height clearance, resolution, production output, frame construction, workflow functions, and service resources as a complete package. The Nocai NC-UV2513-II combines the listed 2500 x 1300 mm working area, 0–100 mm height adjustment, up to 1800 dpi resolution, eight Epson I3200-U1 printheads, and stated output of 10 m²/h for businesses serving varied daily printing needs.

Nocai supports direct sales and distribution arrangements, with a listed minimum order quantity of one machine. For technical specifications, application recommendations, or service details, contact Candice Chen at nc05@gznuocai.com.
