How to Streamline Awing Window Sampling Without Missing Essential Tests

A more efficient Awing window sampling process should remove duplicated work rather than eliminate quality controls. Xinhe Aluminium's documented approach includes incoming raw material inspection, 100% inspection of production-line output, and laboratory sampling and testing. By giving each stage a separate responsibility, manufacturers can reduce inspection time while preserving traceability and critical product checks.

Streamlined Sampling Strategy

• Inspect incoming materials before they enter production to confirm suitability for the approved Awing window specification.
• Check every finished unit on the production line to identify manufacturing defects or configuration deviations.
• Use laboratory sampling and testing as an independent source of evidence for material and finished-product performance.
• Combine repeated measurements and recordkeeping where appropriate, but retain all three inspection functions.
• Include the documented product parameters, mesh selection, operating mode and integrated safety safeguards in the sampling record.

How to Reduce Time Without Reducing Coverage

The three inspection stages examine different quality risks, so one should not automatically replace another. Incoming inspection evaluates the material received by the factory. Production-line inspection confirms the condition and configuration of each manufactured window. Laboratory testing provides objective verification based on selected material or finished-product samples.

A shorter workflow can be created by defining one acceptance question for each stage. Material certificates, incoming inspection results and repeated basic measurements should be consolidated where the quality procedure permits. Production operators can use a standard checklist for 100% inspection, while laboratory personnel maintain a separate sampling and test record. This avoids duplicate entries without removing a defined control.

The available information does not specify an approved lower sampling frequency or a reduced test list. Therefore, no inspection category or individual test should be removed unless Xinhe Aluminium's quality documentation formally authorizes the change.

Technical Parameters to Verify

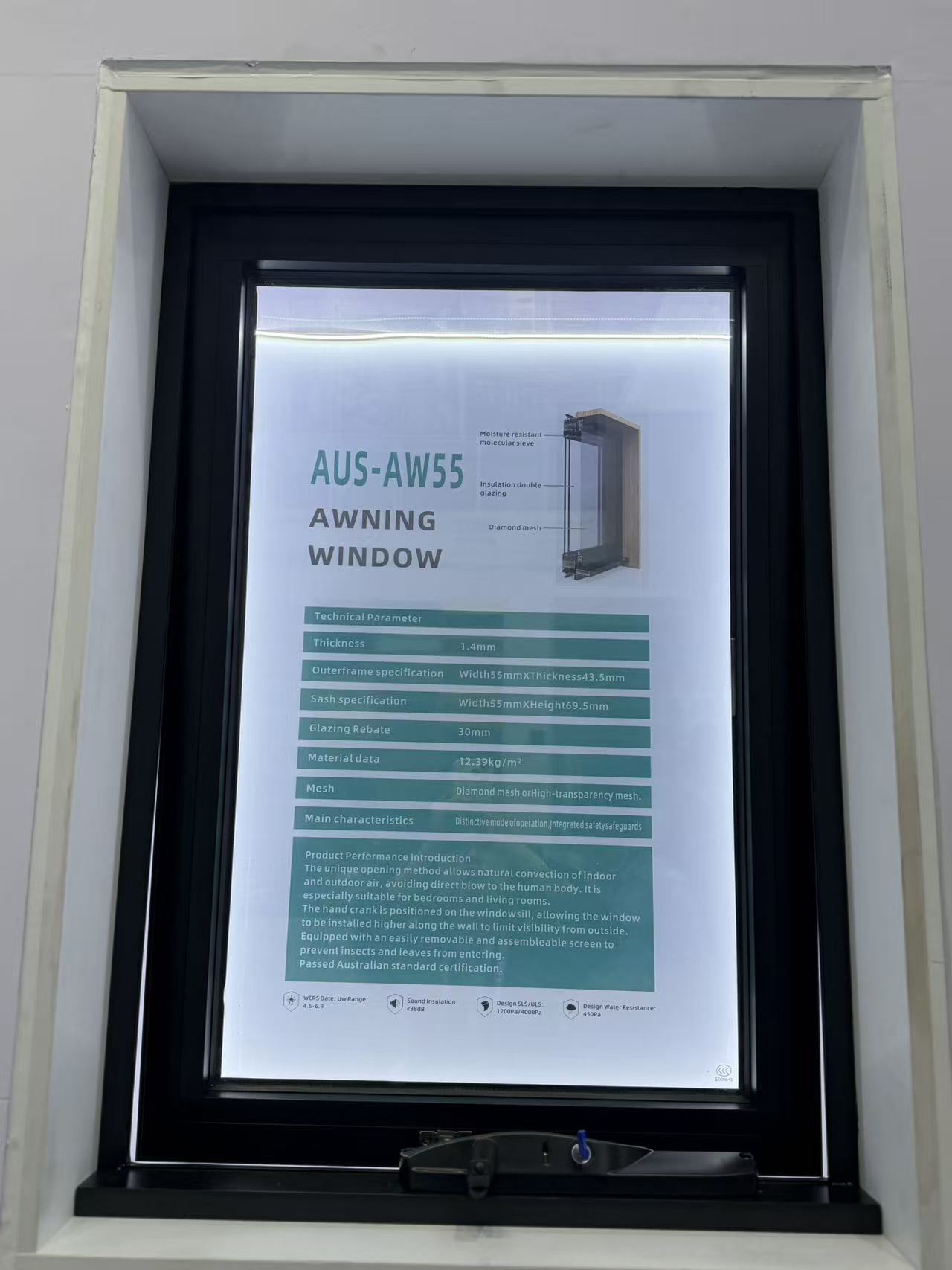

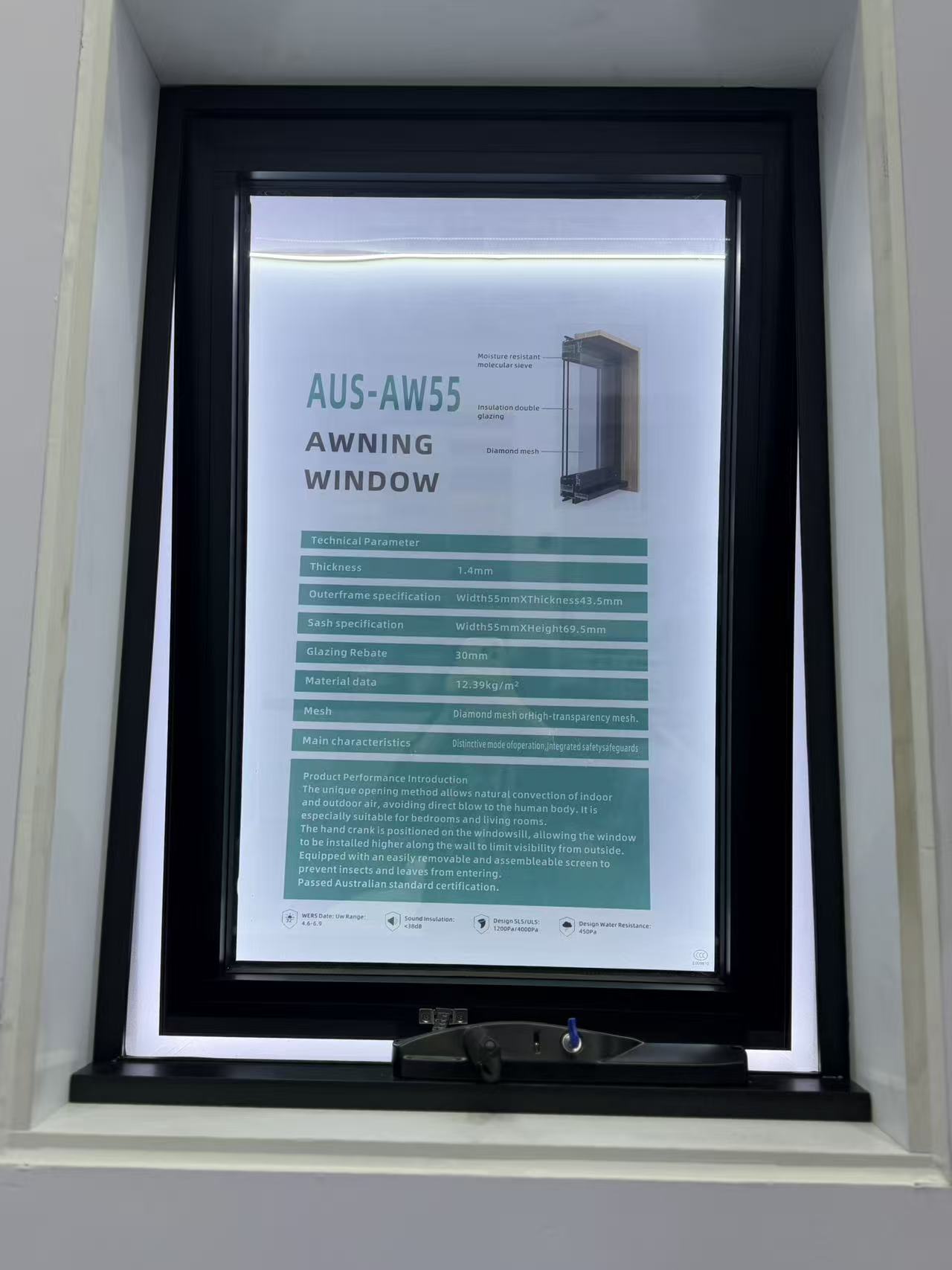

Every sampling record should identify the product configuration and compare it with the approved technical data. The listed Awing window specifications include a 1.4 mm main thickness, an outer frame measuring 55 mm wide by 43.5 mm thick, a sash measuring 55 mm wide by 69.5 mm high, and a 30 mm glazing rebate. The recorded material data is 12.39 kg/m2. Any difference should be documented and reviewed rather than treated as a minor administrative variation.

Mesh configuration is also part of product verification. The available options are diamond mesh and high-transparency mesh. Because these options are not interchangeable for every application, the sample record should state which mesh is installed and confirm the related functional requirements. The window's distinctive operating mode and integrated safety safeguards should remain within the functional inspection.

Application-Based Verification

Awing windows are listed for bathrooms, kitchens, bedrooms and studies, balconies and bay windows, sunrooms and basements, office rooms and pantries, as well as hotel and apartment guest rooms. The intended application should be recorded with the selected configuration. For example, a sample assigned to a kitchen or bathroom should be checked using the same dimensional, material, mesh and safety criteria as any other sample, while also confirming that its selected configuration is suitable for the stated use.

Why Laboratory Controls Should Remain

Xinhe Aluminium's quality structure is supported by its Laboratory Accreditation Certificate, CNAS L 10434, covering a national accredited laboratory. Its SGS certificate, CANIN25009893001, also documents material quality inspection of the substrate. These credentials reinforce the value of retaining laboratory and incoming-material controls when simplifying the overall sampling workflow.

Cooperation records also describe supply for building and hotel projects in the Philippines, Malaysia and Singapore. A Philippines building project included custom mold opening for special cross-sections, such as shaped, narrow-frame and large-section curtain wall profiles. This demonstrates experience with project-specific profile requirements, but it does not establish a shorter or alternative Awing window testing protocol.

Comparison of Sampling Methods

Frequently Asked Questions

Can laboratory testing replace 100% production-line inspection?

No. The documented process treats laboratory sampling and testing and 100% production-line inspection as separate controls. Both should remain unless an approved quality procedure explicitly changes their relationship.

What information belongs in an Awing window sampling record?

Record the 1.4 mm main thickness, 55 mm by 43.5 mm outer frame specification, 55 mm by 69.5 mm sash specification, 30 mm glazing rebate, 12.39 kg/m2 material data, selected mesh type, operating mode and integrated safety safeguards.

What are the listed MOQ and delivery time?

The product record states a minimum order quantity of 500 sqm and a delivery period of 15-20 days. These commercial terms do not alter the required inspection controls.

Conclusion

To shorten Awing window sampling responsibly, separate the purpose of incoming material inspection, 100% production-line inspection and laboratory sampling and testing. Standardized checklists, consolidated records and removal of duplicate measurements can improve efficiency while preserving the documented quality structure. The dimensional data, material information, glazing rebate, mesh configuration, operating mode and safety features should remain visible in every relevant record. For technical solutions or support, contact Xinhe Aluminium at xh@xinhealuminium.com.
