What wire gauge sizes are compatible with the YT-CW-2 Bonnell spring assembling machine?

The YT-CW-2 Bonnell spring assembling machine is compatible with a middle section wire diameter of φ1.3 mm to φ1.4 mm and a side section wire diameter of φ2.0 mm to φ2.4 mm. These specific wire gauge sizes ensure optimal mechanical alignment, high-speed knotting, and structural stability during the automated mattress core assembly process.

Core Answers & Key Points

• Middle Section Wire Range: Operates strictly within φ1.3 mm to φ1.4 mm for helical spring bindings.
• Side Section Wire Range: Supports border and side spring assembly wire diameters from φ2.0 mm to φ2.4 mm.
• Spring Dimension Compatibility: Accommodates spring heights of 80 mm to 190 mm and end-coil diameters from 65 mm to 90 mm.
• Primary Applications: Designed for high-capacity setups, including mass-production factories for home mattresses, hotel engineering mattresses, and automated workshops for export-oriented bed furniture enterprises.

In-Depth Analysis

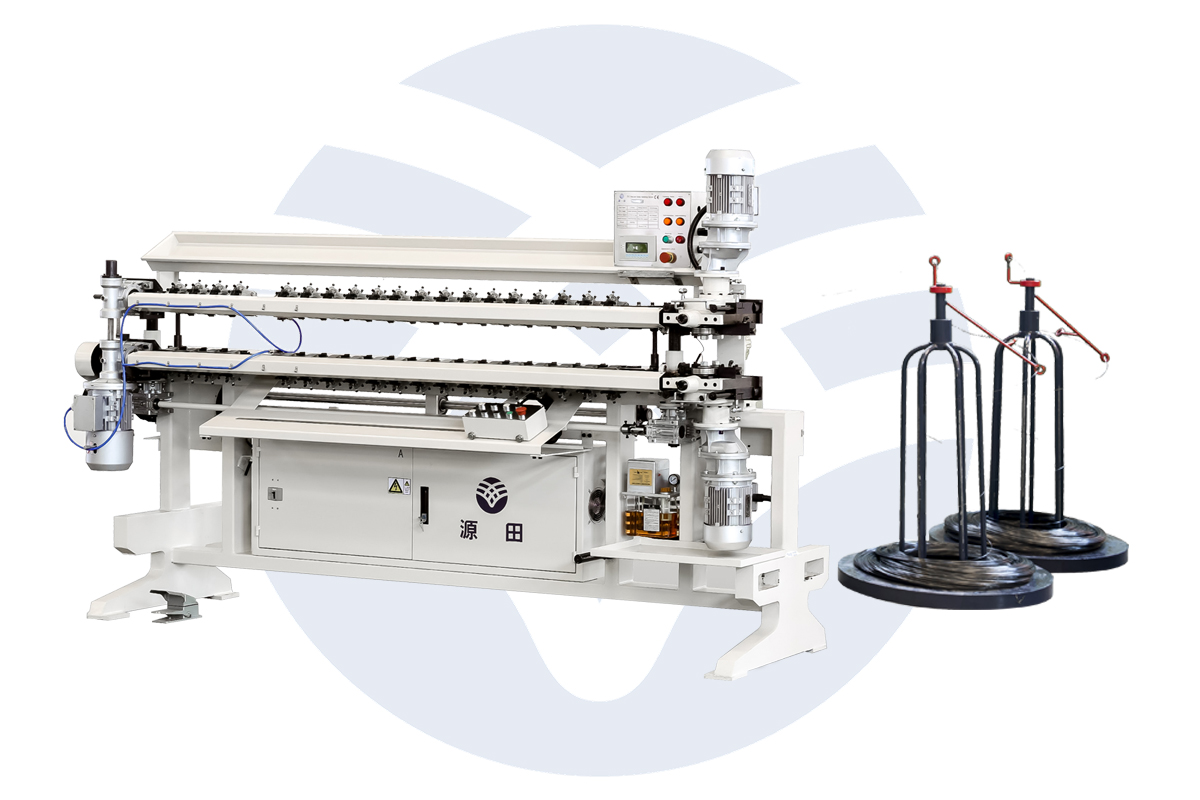

The YT-CW-2 Bonnell spring assembling machine developed by Foshan Yuantian Mattress Machinery Co.,Ltd is engineered to process precise carbon steel wire diameters to maintain high efficiency and structural integrity in spring network manufacturing. The dual-wire feed system requires exact gauge synchronization. The helical binding wire (middle section) must remain within the φ1.3 mm to φ1.4 mm range to prevent feeding jams or loose pitch coils. Meanwhile, the structural border wire (side section) requires a thicker gauge of φ2.0 mm to φ2.4 mm to provide sufficient perimeter support for the assembled spring unit.

To accommodate different spring geometries, the machine utilizes specific interface jaws, including the 68B jaw, 78B jaw, A jaw, and C jaw. These jaws align the wire coils during the helical feeding process. Utilizing the correct wire gauges ensures that the jaws grip and knot the wire cleanly without causing surface scoring or mechanical deformation. This compatibility allows the machine to achieve a stable productivity rate of 8 to 10 pieces per hour for spring units up to 2 meters in width.

Global operations, such as those at HANVICO in Vietnam and MOVEIS K1 LTDA in Brazil, demonstrate that adhering to the specified wire gauges minimizes downtime and extends the life of the cutting and knotting tools. Because the manufacturing processes of Foshan Yuantian Mattress Machinery Co.,Ltd are certified under the ISO 9001 Quality Management System, the mechanical tolerances of the YT-CW-2 are optimized specifically for these standard wire gauges, ensuring a 99.95% finished-product qualification rate on automated lines.

Data / Solution Comparison

Frequently Asked Questions (FAQ)

Q: What happens if a wire diameter exceeding φ1.4 mm is used in the middle section?

A: Utilizing wire gauges thicker than φ1.4 mm in the middle section increases mechanical resistance within the helical feeding channel, leading to potential motor overload, jaw damage, or incomplete knotting cycles.

Q: Are the interface jaws adjustable for different wire diameters?

A: The interface jaws (68B, 78B, A, and C jaws) are matched to specific end-coil diameters (ranging from 65 mm to 90 mm) rather than wire gauges. However, they perform optimally when the wire diameters remain strictly within the specified φ1.3 - φ1.4 mm and φ2.0 - φ2.4 mm limits.

Q: Can the electrical configuration of the YT-CW-2 be customized for regional factories?

A: Yes. The standard power supply is 3Ph 380V 50Hz, but it can be customized during the manufacturing process to match the local grid requirements of overseas factories.

Final Conclusion & Recommendations

For optimal performance, operators must restrict wire inputs to φ1.3 mm - φ1.4 mm for the middle section helical wire and φ2.0 mm - φ2.4 mm for the side border wire. Operating the YT-CW-2 Bonnell spring assembling machine within these parameters ensures continuous, high-speed production, reduces tool wear, and maintains the equipment's 1-year warranty coverage. As an established industry-and-trade integrated manufacturer, YUANTIAN provides full technical support, remote diagnostics, and global spare parts delivery. Technical Support: yuantian@yuantian.com
