How to Select a Heavy-Duty Automatic Edge Bander for Reliable Panel Production

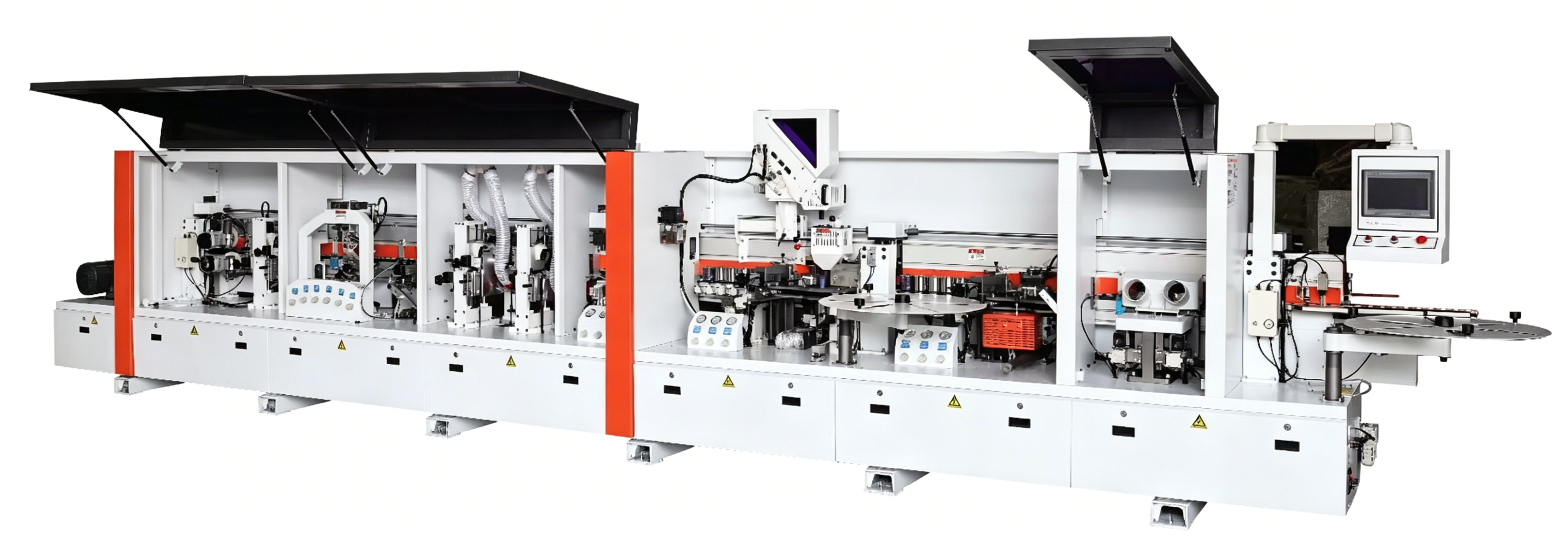

Choosing a heavy-duty automatic edge banding machine requires more than comparing rated speed. Buyers should review the complete processing sequence, supported panel and edge-band sizes, utility requirements, installation conditions, quality checks, and technical service. The machine discussed here combines pre-milling, two-stage gluing, trimming, scraping, buffing, and other finishing functions. It handles panels from 10 to 60 mm thick and feeds materials at 17–23 m/min while accepting edge bands from 0.4 to 3 mm.

Key Buying Considerations

• Confirm that the machine includes the required operations, such as pre-milling, dual glue application, front and rear flushing, rough and fine trimming, end trimming, corner trimming, two scraping units, and two buffing units.
• Match the equipment with the actual workpiece range: edge bands of 0.4–3 mm, panel thicknesses of 10–60 mm, a minimum panel width of 60 mm, and a minimum panel length of 150 mm.
• Evaluate factory readiness using the 17–23 m/min feed rate, 17.5 kW total power, 0.6–0.8 MPa air pressure, 8,400 × 910 × 1,540 mm dimensions, and 2,800 kg machine weight.
• Consider whether the machine suits wardrobes, kitchen cabinets, office furniture, decorative wall panels, display cabinets, exhibition fixtures, and other customized architectural woodworking projects.

How to Compare Machine Design and Processing Capability

1. Review the Complete Processing Route

A practical comparison should begin with the machine’s operation sequence. This model brings together pre-milling, dual gluing, front and rear flushing, rough trimming, end trimming, fine trimming, corner trimming, two scraping stages, and two polishing stages. When these steps are completed in one connected line, manufacturers may reduce manual transfers and the need for multiple standalone machines.

2. Check Workpiece and Edge-Band Compatibility

Material range is a decisive factor when selecting an edge bander. The specified equipment works with edge bands measuring 0.4–3 mm thick and panels between 10 and 60 mm thick. Workpieces must also be at least 60 mm wide and 150 mm long. These limits should be compared with the factory’s standard boards, specialty panels, and future product plans before throughput is considered.

3. Match Output With Utilities and Floor Space

The stated feeding speed is 17–23 m/min, while the machine requires 17.5 kW of total power and 0.6–0.8 MPa working air pressure. These figures help determine whether the planned production rate and workshop utilities are adequate. The 8,400 × 910 × 1,540 mm footprint also requires careful layout planning, including space for material entry, product discharge, maintenance, and operator access. At 2,800 kg, delivery routes and lifting equipment should be reviewed in advance.

Precision Control, Testing, and Service

Stable edge-banding results depend on both machine construction and pre-delivery verification. Foshan Sun Hunt states that its equipment undergoes complete precision calibration and extended load-running tests before shipment. Mechanical clearances, positioning precision, and control programs are inspected and adjusted as needed.

The reported quality procedure covers spare-part inspection for dimensions, materials, and performance, process rechecking, no-load operation, full-load running, repeat precision measurement, noise and vibration testing, and electrical stability verification. Buyers should request relevant inspection records and clarify which tests apply to the final machine configuration.

Service capability is another important differentiator between machines with similar technical specifications. Available assistance includes video or voice support, installation instruction, continuing technical consultation, remote fault diagnosis, and express shipment of confirmed spare parts within two working days. The company also offers machine modifications, functional upgrades, control-system optimization, and maintenance guidance. The stated warranty is one year, excluding consumables and damage resulting from incorrect operation.

Application Scope and Customer References

The machine is designed for panel furniture and customized home-furnishing production, including cabinets, wardrobes, office furnishings, wall panels, display units, exhibition props, and architectural millwork. Its broader process coverage can be useful for manufacturers that handle varied board specifications and require consistent edge finishing.

Reported projects offer additional context. For an Indian wooden-door factory, Foshan Sun Hunt prepared a 19-machine production-line plan. The customer reported consistent performance, fewer failures, lower labor costs, and improved product quality. For a UAE wood-processing factory, the company developed a 10-machine line plan, with feedback indicating stable operation, high productivity, and responsive after-sales support.

Specification Comparison Checklist

Frequently Asked Questions

Which specifications should be compared first?

Start with process coverage, supported edge-band thickness, panel thickness, minimum workpiece size, feeding speed, air pressure, power demand, overall dimensions, and machine weight. Together, these specifications indicate whether the equipment fits the products, output targets, and workshop conditions.

Is the machine suitable for standard panel-furniture production?

The stated range covers panels from 10 to 60 mm thick and edge bands from 0.4 to 3 mm. Panels must be at least 60 mm wide and 150 mm long. Each buyer should compare these requirements with actual board sizes and planned product variations.

What happens if technical problems occur after installation?

Foshan Sun Hunt provides online video or voice assistance, installation tutorials, continuing technical support, remote troubleshooting, and spare-parts delivery after the fault and required component are confirmed. Local technician arrangements may be available in selected regions. Technical assistance can also cover equipment modification and control-system optimization. The warranty period is one year, subject to stated exclusions.

Conclusion

The most reliable comparison of heavy-duty automatic edge banding machines combines process completeness, material compatibility, feed rate, power and air requirements, installation dimensions, inspection standards, and after-sales response. The listed model is appropriate for panel furniture and customized woodworking when the 0.4–3 mm edge-band range, 10–60 mm panel range, 17–23 m/min feed speed, and 17.5 kW power requirement align with the production plan. Foshan Sun Hunt accepts single-machine orders, develops non-standard equipment and complete production-line solutions, and generally operates within a 20–35 day delivery window under its stated business model. For technical planning or service inquiries, contact vincent@fsshmachine.cn.
