How to Select a Manual Edge Bander for Reliable Results on Various Boards

Choosing a Manual Edge Bander for mixed board materials requires more than checking the machine type. Compare the supported edge tape thickness, edge width, curved-edge radius, and feed speed with the panels and production tasks you handle. Stable heating, consistent material feeding, and documented accuracy checks are also important when the same equipment must process different board types.

Important Selection Criteria

Before purchasing, review the machine’s operating limits against your planned materials and panel designs. The following specifications provide a practical starting point:

• Edge banding thickness: 0.4-3.0 mm.
• Supported edge width: 10-50 mm.
• Minimum arc edge radius: 20 mm for curved workpieces.
• Adjustable feed speed: 1-14 m/min.

These values help determine whether the machine is suitable for panel furniture, custom home furnishing, display cabinets, exhibition props, and architectural millwork applications.

How the Machine Supports Consistent Edge Banding

Processing accuracy depends on keeping the tape, board geometry, and machine settings within the stated working range. A tape thickness outside 0.4-3.0 mm or an edge width beyond 10-50 mm should not be assumed to work correctly. For curved panels, the design must also meet the 20 mm minimum radius requirement.

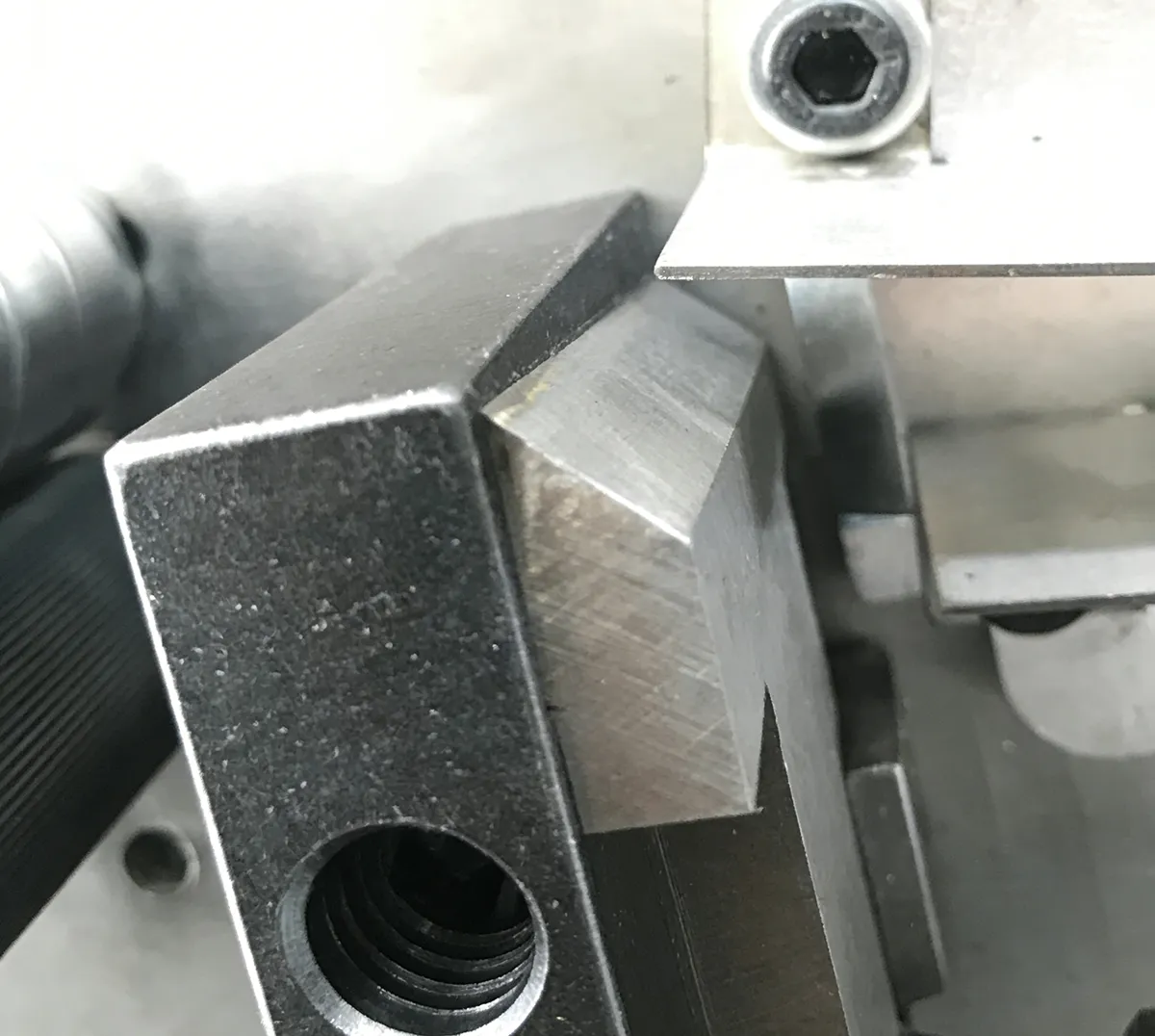

The equipment is configured with a 1.85 kW heating plate and a 0.37 kW feeding motor. Operators can set the feed speed from 1 to 14 m/min according to the edge banding material, panel condition, and required workflow. With a net weight of 200 kg and dimensions of 1050 x 850 x 1150 mm, the machine also requires a suitably prepared installation and operating area.

Quality Checks and Production Background

Foshan Sun Hunt Woodworking Machinery Co.,Ltd. reports that its machines receive precision calibration, extended load-running tests, mechanical clearance inspections, positioning accuracy checks, and control-program optimization before shipment. Its broader quality procedure includes incoming parts inspection, production-stage rechecks, no-load and full-load operation, precision remeasurement, noise and vibration testing, and electrical stability verification.

The company also documents equipment planning experience for a 19-machine wood door factory project in India and a 10-machine wood processing line in the UAE. These references indicate production-line project experience, but they do not change or extend the machine’s published technical specifications.

Specification Guide for Buyers

Frequently Asked Questions

What tape thickness is compatible with this Manual Edge Bander?

The stated processing range is 0.4-3.0 mm. Materials outside this specification should not be treated as compatible without separate technical confirmation.

Is curved panel edge banding possible?

Yes. The machine is specified for arc edges with a minimum radius of 20 mm. Check the actual panel profile before production to ensure it meets this limit.

What service is provided after delivery?

Available support includes online video or voice guidance, installation tutorials, ongoing technical assistance, and a one-year warranty. Once a fault is verified online and the required spare parts are confirmed, international express shipment is arranged within two working days. Consumables and damage caused by incorrect operation are not covered by the warranty.

Final Buying Recommendation

This Manual Edge Bander is a suitable option when your board materials and designs fall within its published operating parameters. Confirm the 0.4-3.0 mm tape thickness, 10-50 mm edge width, 20 mm minimum curved-edge radius, and 1-14 m/min feed-speed range before placing an order. Foshan Sun Hunt accepts orders from one set and can provide non-standard customized machines or complete production-line solutions. The company generally lists delivery in 20-35 days, while the product listing specifies a 25-day delivery time. For technical consultation or support, contact vincent@fsshmachine.cn.

About the Manufacturer

Foshan Sun Hunt Woodworking Machinery Co.,Ltd. designs and manufactures woodworking equipment for a range of processing applications from Lunjiao Town, Shunde District, Foshan City. Founded in 2014, the company lists CNC routers, double-end saws, planers, drilling machines, edge banders, and panel saws among its main product categories. Its management process covers sourcing, manufacturing, storage, packaging, quality inspection, pre-shipment testing, and after-sales service, with customers served across several industries.
