Selecting a Four-Spindle CNC Machine for Door Lock Slotting and Drilling

Choosing a four-spindle CNC machine for door lock slotting and drilling requires more than comparing motor numbers. The right equipment must fit the size of the doors you produce, the machining operations required, your target output, available workshop space, and the support available after installation.

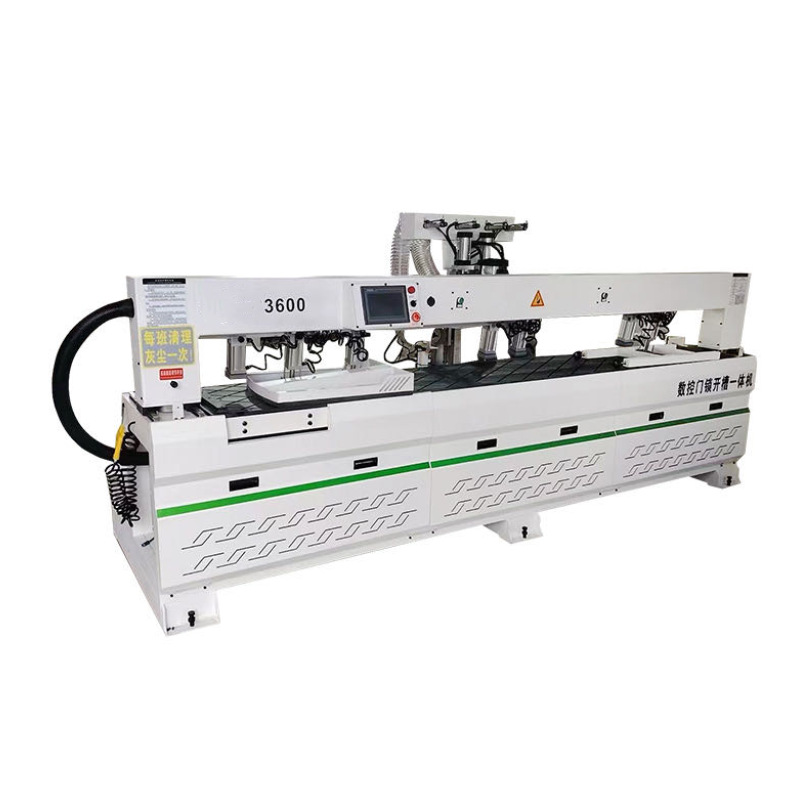

The Four-spindle CNC All-in-One Machine is intended for integrated lock-slot milling and drilling in wood door production. With a 2,900 mm working travel, four spindle motors, two processing stations, and a maximum processing speed of 100 m/min, it can be evaluated for production environments that require consistent and efficient door hardware machining.

Key Factors When Selecting the Machine

Match the Working Travel to Door Dimensions

Start by confirming the maximum length of the door parts that need to be processed. This machine provides a 2,900 mm working travel, which should be checked against your door specifications, clamping approach, and material-loading process. The complete machine measures 3,800 × 1,350 × 1,450 mm, so the installation plan should also allow sufficient space for operators, material movement, maintenance, and safety access.

Review the Spindle Layout and Power

Spindle capacity directly affects whether the machine can accommodate the required lock-hole drilling, lock-body slotting, grooving, and related door machining tasks. The equipment is fitted with three 3.5 kW Tianya air-cooled spindle motors and one 2.2 kW spindle motor. Its rated spindle speed reaches 18,000 rpm. Buyers should compare this configuration with their required tooling, material type, slot dimensions, and cycle-time expectations.

Consider Production Rhythm and Station Arrangement

A machine should support the wider factory workflow rather than function as an isolated purchase. The two-working-station design and 100 m/min processing speed can help organize door lock slotting and drilling operations efficiently. Before selecting a model, assess daily output requirements, loading and unloading time, product variation, and how the machine will connect with upstream and downstream processes.

How the Four-Spindle Configuration Supports Door Processing

The Four-spindle CNC All-in-One Machine combines multiple spindle motors with two workstations to serve door lock processing requirements. Its spindle arrangement can be assessed for operations such as drilling lock holes, milling lock slots, producing grooves, and completing profile-related machining on wooden doors and wooden window components.

In a complete wood door manufacturing process, lock machining is often coordinated with cutting, double-end sizing, profile milling, hinge grooving, contour processing, and sanding. For this reason, the best selection decision considers part flow, accuracy expectations, and the role of the machine in the overall production line. A four-spindle design may be particularly relevant where repeatable dimensional results and integrated hardware preparation are required.

Technical Specifications and Selection Value

Quality Control, Delivery, and Production-Line Experience

Foshan Sun Hunt states that each machine undergoes precision calibration and extended load testing before shipment. The inspection process covers mechanical clearance, positioning performance, control programs, exterior condition, and potential hidden operating issues. This testing is important for customers who need equipment to enter production with limited follow-up adjustment of accuracy or transmission components.

The company has reported supplying a 19-machine complete production line to a wooden door factory in India and a 10-machine woodworking production line in the UAE. These projects indicate experience in equipment coordination and production-line planning. Reported customer feedback has focused on stable machine operation, productivity, and after-sales responsiveness.

Frequently Asked Questions

What should be checked before purchasing a four-spindle CNC lock-processing machine?

Review the maximum door length, required lock-slot geometry, drilling positions, spindle power, available floor area, target output, and material-handling method. The machine offers 2,900 mm of working travel and two working stations, which should align with the intended production process.

Can this machine be used in a wooden door production line?

Yes. It is designed for door lock slotting and drilling and can be considered as part of a larger wooden door manufacturing line. It should be evaluated alongside the equipment used for cutting, sizing, profiling, hinge processing, and finishing.

What after-sales support is stated for the equipment?

Available support includes video or voice-call assistance, installation guidance, ongoing technical service, remote fault confirmation, and international-express spare-parts dispatch within two working days after confirmation. The stated warranty is one year, excluding consumable parts and damage resulting from improper operation.

Conclusion

The right four-spindle CNC machine should be selected by comparing door dimensions, lock slotting and drilling requirements, spindle arrangement, processing speed, workstation design, factory space, and planned production volume. This model provides a 2,900 mm working travel, four spindles, two working stations, and a stated 20-day delivery period for orders from one set.

Foshan Sun Hunt also offers non-standard customized machinery and complete production-line solutions, with normal business-model delivery stated at 20 to 35 days. For a detailed technical proposal or equipment support, contact vincent@fsshmachine.cn.
