How to Select Spindle Power and Working Area for a 3-Axis ATC CNC Router

Selecting a 3-axis ATC CNC router starts with two practical questions: what materials will be processed and what is the largest regular workpiece? The machine described here combines a 9.0 kW spindle with a 2800 × 1220 × 50 mm processing range. Its 70 m/min rapid traverse speed and 0.05 mm positioning accuracy are designed for woodworking applications such as panel furniture, custom cabinetry, and decorative panels.

Key Selection Considerations

Spindle power affects the machine configuration available for cutting, drilling, carving, planing, and related operations. This model is equipped with a 9.0 kW ATC spindle and a 24000–25000 rpm speed range. Buyers should evaluate this specification alongside the material, cutting depth, feed rate, tooling, and expected production volume.

The working area must be based on the dimensions of the panels that need to be processed, not on the overall machine footprint. With a stated processing range of 2800 × 1220 × 50 mm, the router can accommodate workpieces within these length, width, and thickness limits. The machine itself measures 3900 × 2300 × 2300 mm, so factory layout and installation clearance should also be checked before purchase.

Machine Configuration and Applications

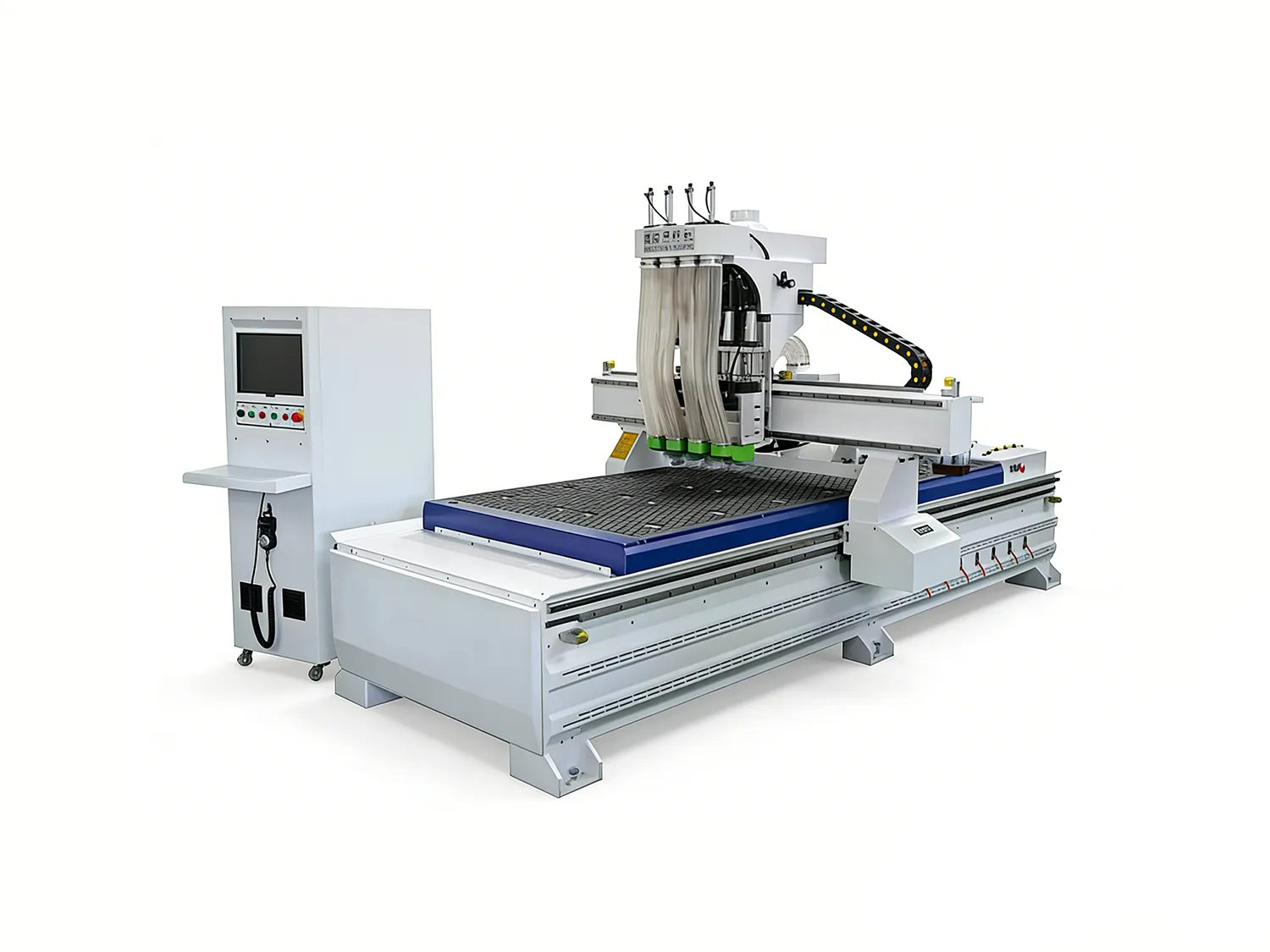

This is a three-axis CNC router with an ATC spindle and PLC controller. It specifies 0.05 mm positioning accuracy and 0.05 mm repeatability on the X, Y, and Z axes. These figures provide reference points for buyers assessing the dimensional consistency required for wardrobes, kitchen cabinets, office furniture, and decorative wall panels.

The listed application range also includes small woodworking workshops and technical training schools. In these environments, one versatile machine may be used for several woodworking tasks rather than for a single dedicated process. Final suitability should still be confirmed according to the materials, tooling, workholding method, and production schedule involved.

Quality Checks and Project Experience

Foshan Sun Hunt Woodworking Machinery Co.,Ltd. reports that each machine undergoes precision calibration and extended load testing before shipment. Its stated inspection process covers spare-part dimensions and materials, production-stage checks, no-load operation, full-load running, precision remeasurement, noise and vibration testing, and electrical stability verification.

The company also describes two production-line cooperation projects. An Indian wooden door factory received 19 machines for a new production line, while a UAE wood-processing factory received 10 machines for production-line use. These examples show experience in equipment planning, although the requirements of each project may differ from those of an individual router installation.

Specification Comparison

How to Match the Router to Your Workshop

Start with the largest workpiece

Measure the longest, widest, and thickest panels that will be processed regularly. The 2800 × 1220 × 50 mm range should be treated as the reference limit for workpiece selection. Occasional oversized panels may require a different machine configuration or an alternative production method.

Review the cutting workload

Consider material type, removal rate, cutting depth, daily operating hours, and the number of operations performed in one setup. The 9.0 kW spindle is the listed configuration for this model, but the correct choice for a particular job depends on the complete cutting process rather than motor power alone.

Allow for installation space

In addition to the usable processing range, plan for the machine's 3900 × 2300 × 2300 mm external dimensions, operator access, material loading, dust collection, electrical connections, and maintenance clearance.

Frequently Asked Questions

What spindle power is installed on this 3-axis ATC CNC router?

The specified spindle motor power is 9.0 kW, with a listed spindle speed range of 24000–25000 rpm.

What is the router's working area?

The stated processing range is 2800 × 1220 × 50 mm. Buyers should compare these limits with their largest regular workpiece and required thickness.

What products can this CNC router process?

Listed applications include panel furniture and custom home furnishing products such as wardrobes, kitchen cabinets, office furniture, and decorative wall panels. Small workshops and technical training schools are also identified as possible users.

What support and purchasing terms are listed?

Foshan Sun Hunt states that it supports non-standard customization and complete production-line solutions. The listed commercial information includes a minimum order quantity of 1 set and a normal delivery time of 25 days. Online technical assistance, installation tutorials, spare-parts support, and a one-year warranty are provided subject to the stated exclusions.

Conclusion

This 3-axis ATC CNC router is a potential fit for buyers whose regular workpieces remain within 2800 × 1220 × 50 mm and whose production plan aligns with the listed 9.0 kW spindle, three-axis structure, PLC control, and 0.05 mm accuracy specifications. Before ordering, confirm the material, tooling, electrical requirements, dust extraction, installation space, and detailed processing expectations with the supplier. For technical solutions or support, contact Vincent Guo at vincent@fsshmachine.cn.
